Vertical Machine Center
Vertical Machine Center
SHV-550
Linear Guideway Vertical Machining Center
DESIGNED FOR HIGH-SPEED & HIGH-PRECISION MACHINING
•The high compatibility with application demands. Machine size is small, but it can be equipped with apparatus to complete different works.
• All axes are equipped with precision linear guideways, providing rapid feed rates and high load capacity to ensure accurate positioning.

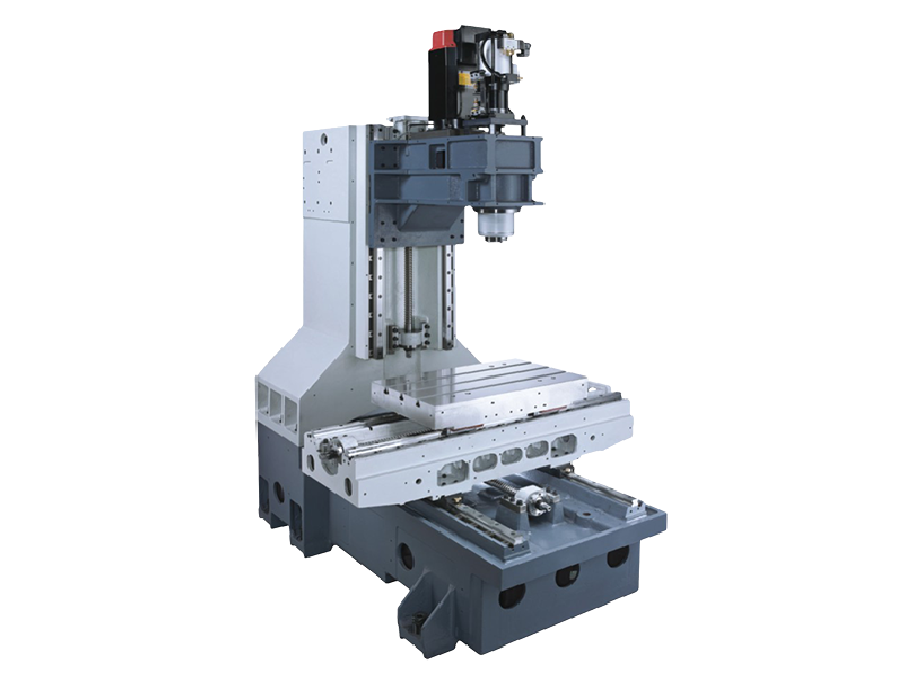

• The machine column features an A-shaped base structure to enhance stability during machining.
• The headstock is equipped with a standard spindle air blast system and spindle oil cooling system to minimize thermal deformation caused by high-speed spindle rotation, ensuring high machining accuracy and extended spindle life.
• All axes are equipped with precision linear guideways, providing rapid feed rates and high load capacity to ensure accurate positioning.
• The machine column features an A-shaped base structure to enhance stability during machining.
• The headstock is equipped with a standard spindle air blast system and spindle oil cooling system to minimize thermal deformation caused by high-speed spindle rotation, ensuring high machining accuracy and extended spindle life.
| MODEL | UNIT | SHV-550 |
|---|---|---|
| 3-Axes travel | - | Linear guideways |
| X axis Travel | mm | 550 |
| Y axis Travel | mm | 400 |
| Z axis Travel | mm | 460 |
| Distance from spindle nose to table surface | mm | 120-580 |
| TABLE | ||
| Table area | mm | 650 x 410 |
| Max. load | kgs | 250 |
| T- slot | mm | 3 x 14 x 100 |
| SPINDLE | - | - |
| Spindle taper | - | BT40 |
| Spindle speed(Belt type) | rpm | 10000 |
| Spindle speed (Direct drive) | type | 10000/12000/15000 |
| Spindle motor | kw | 5.5/7.5 |
| Spindle Cooling | type | Oil cooler |
| FEED RATE | ||
| Rapid traverse X,Y,Z | m/min | 36/36/36 |
| Cutting feed rate | mm/min | 1-15000 |
| X / Y/ Z Axis servo motor(FANUC) | kw | 1.2 / 1.2 / 3.0 |
| X / Y/ Z Axis servo motor (MITSUBISHI) | kw | 1.5 / 1.5 / 2 |
| ATC | ||
| Magazine type (BT40) | type | Arm |
| Tool magazine capacity | pcs | 24 |
| Max. tool diameter | mm | 75/150 |
| Max. tool length | mm | 200 |
| Max. tool weight | kgs | 7 |
| Tool selection | type | Random |
| OTHER | ||
| Power consumption | KVA | 20 |
| Machine size (LxWxH) | mm | 2400x2450x2650 |
| Machine weight | kgs | 3400 |
Standard Accessories
- Full splash guard
- Belt tye spindle speed 10000 rpm, BT40
- Spidle motor 5.5/7.5 kw
- Armless type ATC 24 tools ,BT40
- Rigid tapping
- Cooling system
- Auto lubrication system
- Spindle oil cooler unit
- Heat exchanger
- Telescopic covers for 3 axes
- Work lamp
- Three-color call light
- Tool box
- Coolant gun
- Drawer type chip coolant tank
Optional Accessories
- Transformer
- CE mark
- Belt type spindle speed 12000rpm
- Direct drive spindle speed 10000/12000/15000 rpm
- Built-in type spindle speed 24000 / 30000 / 36000 rpm
- Rear coolant flushing device
- Oil skimmer
- Coolant through spindle (With sealed splash guard)
- Screw type chip conveyor + chip cart
- Chain type chip conveyor + chip cart
- Roller type linear guideway
