Vertical Machine Center
Vertical Machine Center
SHV-2000
Application: milling machine, cnc milling, high speed milling machine, rotary table.

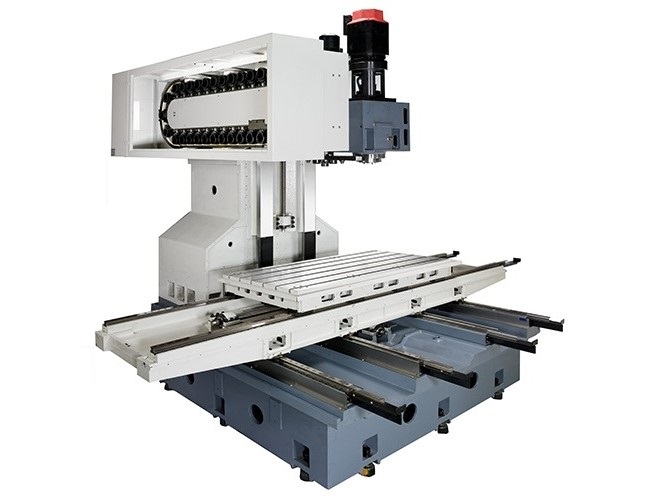

Optimal Structure Design High Rigidity! Lifetime Stability!
The machine structure is constructed from high quality Meehanite cast iron and stress released to
ensure great rigidity and prolonged precision.
All axes with high precision linear guideway ensure rapid movement and accurate positioning.
The column bottom is specially designed with A-shaped structure to increase machine stability while
machining.
ensure great rigidity and prolonged precision.
All axes with high precision linear guideway ensure rapid movement and accurate positioning.
The column bottom is specially designed with A-shaped structure to increase machine stability while
machining.
Finite Element Analysis
The structural parts on Selica machine are analyzed and designed by the advanced Finite Element Analysis.
It provides a detailed analysis for structural stress/strain condition, and ensures excellent machine rigidity
and lifetime stability.
It provides a detailed analysis for structural stress/strain condition, and ensures excellent machine rigidity
and lifetime stability.
Linear Guide Way
The machine employs 30/35/35mm wide ball-type linear guide ways.
Precision Ball Screw
Three axes are transmitted by high precision ball screws,
preloaded, hardened and ground-assuring dependable
feed accuracy.
preloaded, hardened and ground-assuring dependable
feed accuracy.
| Model | Unit | SMV - 2000 |
|---|---|---|
| Travel | - | Linear guideways (X,Y) + Box ways (Z) |
| X axis Travel | mm | 2000 |
| Y axis Travel | mm | 900 |
| Z axis Travel | mm | 750(1000 opt.) |
| Spindle nose to table surface | mm | 150-900 (150-1150 opt.) |
| Spindle center to column surface | mm | 950 |
| Table area | mm | 2050 x 900 |
| Max. load | kgs | 3000 |
| T- slot | mm | 6 x 18 x 145 |
| Spindle speed | rpm | 6000 |
| Spindle taper | type | BT50 |
| Magazine type | type | Arm/Chain type (opt.) |
| Tool magazine capacity | pcs | 24/32 |
| Max. tool diameter | mm | 110/200,125/250 |
| Max. tool length | mm | 300 |
| Max. tool weight | kgs | 15 |
| Spindle motor | kw | 15/18.5 |
| X/Y/Z axis motor | kw | 7/7/7 |
| Rapid traverse X | m/min | 24 |
| Rapid traverse Y | m/min | 24 |
| Rapid traverse Z | m/min | 15 |
| Cutting feed rate | mm/min | 1-7000 |
| Diameter of X,Y,Z axis | mm | 50 |
| Pitch of X/Y/Z axis | mm | 10 |
| Width of linear guideways (X,Y) | mm | 45 (8 blocks for each axis) |
| Width of box ways (Z) | mm | 140 (55 thickness) |
| Machine size (LxWxH) | mm | 5800x4000x3650 |
| Machine weight | kgs | 18500 |
Standard Accessories
- Full splash guard
- Roller type linear guideway for X,Y axis
- Box way for Z axis
- Belt type spindle speed 6,000rpm , BT50
- Arm type ATC 24 tools, BT50
- Rigid tapping
- Cooling system
- Auto lubrication system
- Spindle oil cooler unit
- Heat exchanger
- Telescopic covers for 3 axes
- Work lamp
- Three-color call light
- Tool box
- Coolant gun
- Screw type chip conveyor
Optional Accessories
- Transformer
- CE mark
- Arm type ATC 32/40 tools, BT50
- Spindle motor 15/18.5 kw
- Spindle motor 18.5/22 kw
- Belt type spindle speed 8000 rpm, BT50
- Direct drive spindle speed 10000 rpm, BT50
- Rear coolant flushing device
- Oil skimmer
- Coolant through spindle (With sealed splash guard)
- Chain type chip conveyor + chip cart
- 4th axis rotary table
- Z axis travel 1000 rpm
- Spindle speed 8000 rpm, BT40 +Arm type ATC24, BT40
