Vertical Machine Center
Vertical Machine Center
SMV-1100
Application: milling machine, cnc milling, high speed milling machine, rotary table.

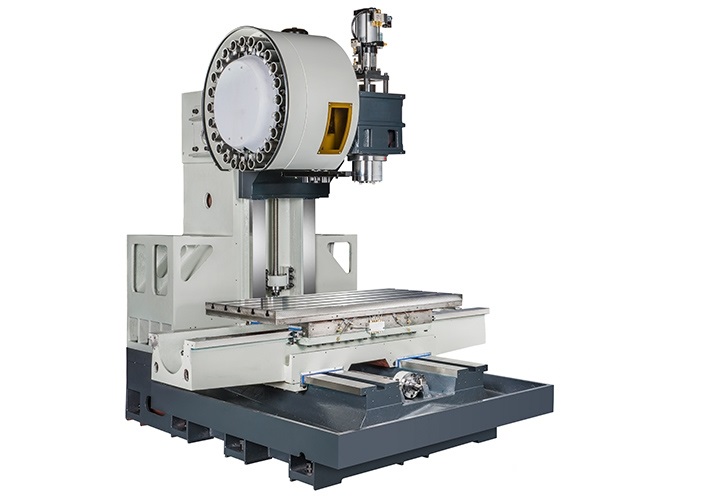

EXTRA RIGID MACHINE STRUCTURE Oversized Column
Increased width on the column bottom, combined with box type structure, greatly upgrades rigidity and stability during machining.
Box slide ways on the 3 axes are high frequency hardened. Way surfaces are coated with Turcite-B and precision scraped.
Extra wide slide ways and distance between slide ways and distance between at low speed travel while ensuring high stability.
The major structures are manufactured from Meehanite cast iron with scientific rib reinforcement. This reduces structural deformation to a minimum.
Box slide ways on the 3 axes are high frequency hardened. Way surfaces are coated with Turcite-B and precision scraped.
Extra wide slide ways and distance between slide ways and distance between at low speed travel while ensuring high stability.
The major structures are manufactured from Meehanite cast iron with scientific rib reinforcement. This reduces structural deformation to a minimum.
Direct Drive Spindle
Spindle Speeds 10,000RPM, 12,000RPM 15,000 RPM
| Model | Unit | SMV - 1100 |
|---|---|---|
| 3-Axes travel | - | Box way series |
| X axis Travel | mm | 1100 |
| Y axis Travel | mm | 600 |
| Z axis Travel | mm | 600(120-720*) |
| Distance from spindle nose to table surface | mm | 120-720 |
| Z axie travel (BT40) - opt. | mm | - |
| Z axie travel (BT50 belt type) - opt. | mm | - |
| Z axie travel (BT50 gear head) - opt. | mm | - |
| Table area | mm | 1250 x 650 |
| Max. load | kgs | 880 |
| T- slot | mm | 5 x 18 x 125 |
| Spindle taper | type | BT40 |
| Spindle speed | rpm | 10000 |
| Spindle drive | type | Belt |
| Spindle motor | kw | 7.5/11 |
| Spindle cooling | type | Oil cooler |
| Rapid traverse X | m/min | 18 |
| Rapid traverse Y | m/min | 18 |
| Rapid traverse Z | m/min | 15 |
| Cutting feed rate | mm/min | 1-10000 |
| X / Y/ Z Axis servo motor (FANUC) | kw | 2.5/2.5/2.5 |
| X / Y/ Z Axis servo motor (MITSUBISHI) | kw | 3.5/3.5/3.5 |
| Magazine type | type | Arm |
| Tool magazine capacity | pcs | 24 |
| Max. tool diameter | mm | 75/150 |
| Max. tool length | mm | 300 |
| Max. tool weight | kgs | 7 |
| Tool selection | type | Random |
| Power consumption | KVA | 20 |
| Machine size (LxWxH) | mm | 3430x2560x2870 |
| Machine weight | kgs | 7500 |
Standard Accessories
- Full splash guard
- Belt type spindle speed 10000 rpm, BT40
- Spindle motor 7.5/11kw
- Rigid tapping
- Cooling system
- Auto lubrication system
- Spindle oil cooler unit
- Heat exchanger
- Work lamp
- Three-color call light
- Tool box
- Coolant gun
- Screw type chip conveyor
Optional Accessories
- Transformer
- CE Mark
- Arm type ATC 30 tools,BT40 or BT50
- Spindle motor 11/15kw
- Belt type spindle speed 6000/8000 rpm,BT50
- Arm type ATC 24 tools, BT40
- Rigid tapping
- Cooling system
- Auto lubrication system
- Spindle oil cooler unit
- Heat exchanger
