Vertical Machine Center

Vertical Machine Center

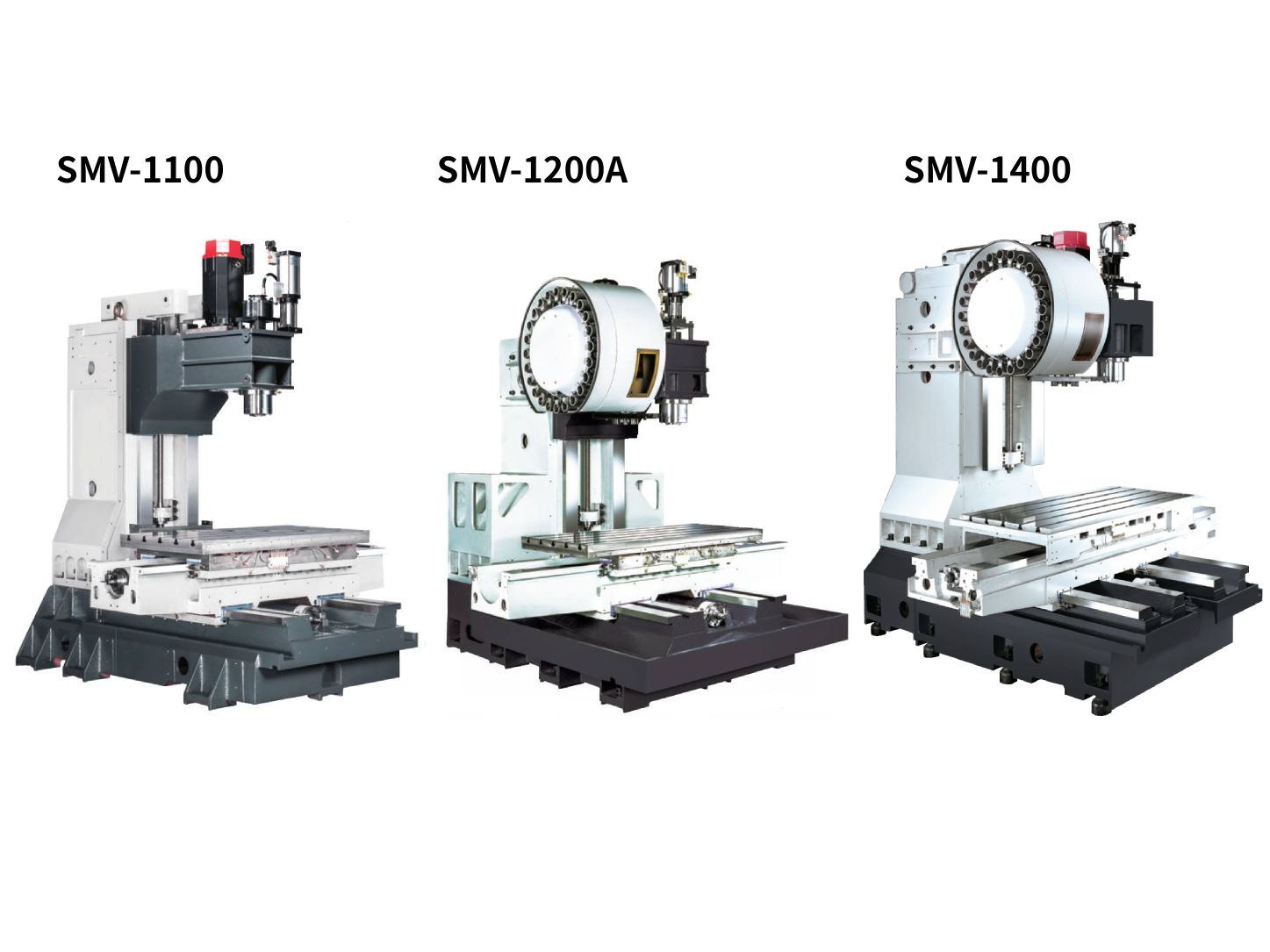

SMV-1200A
SMV-1200A
Application: milling machine, cnc milling, high speed milling machine, rotary table.
High Precision Spindle
The spindle is assembled by our highly skilled technicians.Before mounting on the machine, each spindle is subjected to a long time running test to ensure the optimum condition.

The spindle runs on preloaded precision angular contact ball bearings and transmitted by a timing belt. Standard spindle speed is 8,000 RPM. On request, 10,000 or 12,000RPM high speed spindles are available.
ModelUnitSMV - 1200A
3-Axes travel-Box way series
X axis Travelmm1100
Y axis Travelmm650
Z axis Travelmm600(120-720*)
Z axie travel (BT40) - opt.mm800(120-920*)
Z axie travel (BT50 belt type) - opt.mm720(150-870*)
Z axie travel (BT50 gear head) - opt.mm600(120-720*)
Table areamm1350 x 650
Max. loadkgs1000
T- slotmm5 x 18 x 150
Spindle tapertypeBT40(BT-50opt.)
Spindle speedrpm10000
Spindle drivetypeBelt (Gear head opt.)
Spindle motorkw7.5/11
Spindle coolingtypeOil cooler
Rapid traverse Xm/min18
Rapid traverse Ym/min18
Rapid traverse Zm/min15
Cutting feed ratemm/min1-10000
X / Y/ Z Axis servo motor(FANUC)kw2.5/2.5/2.5
X / Y/ Z Axis servo motor (MITSUBISHI)kw3.5/3.5/3.5
Magazine typetypeArm
Tool magazine capacitypcs24
Max. tool diametermm75/150
Max. tool lengthmm300
Max. tool weightkgs7
Tool selectiontypeRandom
Power consumptionKVA40
Machine size (LxWxH)mm3550x2570x2950
Machine weightkgs8200
Standard Accessories
  • Full splash guard
  • Spindle motor 7.5/11kw
  • Rigid tapping
  • Cooling system
  • Auto lubrication system
  • Spindle oil cooler unit
  • Heat exchanger
  • Work lamp
  • Three-color call light
  • Tool box
  • Coolant gun
  • Screw type chip conveyor
Optional Accessories
  • Transformer
  • CE Mark
  • Arm type ATC 30 tools,BT40 or BT50
  • Spindle motor 11/15kw
  • Belt type spindle speed 6000/8000 rpm,BT50
  • Rigid tapping
  • Cooling system
  • Auto lubrication system
  • Spindle oil cooler unit
  • Heat exchanger
