CNC Swiss Type Lathe

SS-32A/32S/32AS/32AB/42AB

Application: swiss type lathe, swiss type lathes, cnc swiss lathe, swiss turning machines, medical implant.

Internal Structure

Max. turning diameter 26mm ~ 42mm.
Seven axes simultaneously movement(X1/Y1/Z1/X2/Z2/C1/C2).
Main / Sub spindle C axis movement.
Sub tooling system can make eccentric drilling, milling and grooving function.
Side drilling can be converted to end drilling.

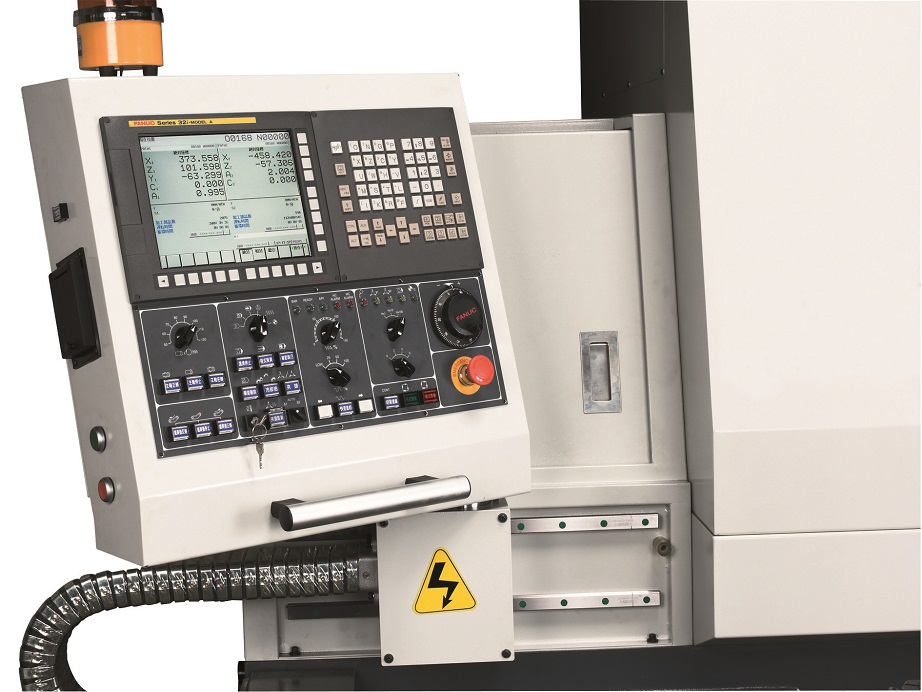

Control Panel

control panel can be moved and swiveled for upgrading convenience of operation

Tooling System

External tool holder : 6pcs
Inner tool holder : 5pcs
Side drilling device : 5pcs (SS-26AB,32AB)
End drilling device : 4pcs (SS-26AB,32AB)

Side drilling is converted to 3-tool to end drilling.
(Main spindle and sub-spindle perform machining synchronously.)
Original 5-tool side drilling is changed to 4-tool.

Model	Unit	SS-26A	SS-26AB	SS-32A	SS-32S	SS-32AS	SS-32AB	SS-42AB
Max. turning dia. of main spindle	mm	26	26	32	32	32	32	42
Max. turning dia. of sub-spindle	mm	-	26	-	32	32	32	42
Max. turning length (fixed guide bush)	mm	220	220	220	220	220	220	220
Max. turning length (rotary guide bush)	mm	200	200	200	200	200	200	200
Max. turning length (non guide bush)	mm	65	65	80	80	80	80	80
Max. drilling capacity of main spindle	mm	13	13	13	13	13	13	13
Max. drilling capacity of sub-spindle	mm	-	13	-	13	13	13	13
Max. tapping capacity of main spindle	-	M10	M10	M10	M10	M10	M10	M10
Max. tapping capacity of sub-spindle	-	-	M10	-	M10	M10	M10	M10
Max. cross drilling capacity	mm	10	10	10	-	10	10	10
Max. cross tapping capacity	-	M8	M8	M8	-	M8	M8	M8
No. of external turning tools	pcs	6 / 5 (type 42)	6 / 5 (type 42)	6 / 5 (type 42)	6 / 5 (type 42)	6 / 5 (type 42)	6 / 5 (type 42)	6 / 5 (type 42)
No. of internal turning tools	pcs	5	5	5	5	5	5	5
No. of cross drillings	mm	4 + (1)	4 + (1)	4 + (1)	4 + (1)	4 + (1)	4 + (1)	4 + (1)
No. of face tool holder of sub-spindle	rpm	-	4	-	-	-	4	4
Size of tool	m/min	16x16x95 ~ 155 / 20x20x95 ~ 155 (type 42)	16x16x95 ~ 155 / 20x20x95 ~ 155 (type 42)	16x16x95 ~ 155 / 20x20x95 ~ 155 (type 42)	16x16x95 ~ 155 / 20x20x95 ~ 155 (type 42)	16x16x95 ~ 155 / 20x20x95 ~ 155 (type 42)	16x16x95 ~ 155 / 20x20x95 ~ 155 (type 42)	16x16x95 ~ 155 / 20x20x95 ~ 155 (type 42)
No. of axis controls	kw	4	7	4	4	5	7	7
Bore of spindle	kw	40	40	45	45	45	45	55
Spindle speed range	rpm	200 ~ 7000 / 200 ~ 6000 (type 42)	200 ~ 7000 / 200 ~ 6000 (type 42)	200 ~ 7000 / 200 ~ 6000 (type 42)	200 ~ 7000 / 200 ~ 6000 (type 42)	200 ~ 7000 / 200 ~ 6000 (type 42)	200 ~ 7000 / 200 ~ 6000 (type 42)	200 ~ 7000 / 200 ~ 6000 (type 42)
Rapid traverse X/Z	m/min	24	24	24	24	24	24	24
Main spindle motor	kw	7.5	7.5	7.5	7.5	7.5	7.5	7.5
Sub-spindle motor	mm	-	7.5	-	7.5	7.5	7.5	7.5
X1/Z1 motor	kw	1.4	1.4	1.4	1.4	1.4	1.4	1.4
Y-axis motor	kw	0.75	0.75	0.75	0.75	0.75	0.75	0.75
Cross drilling motor	kw	1.4	1.4	1.4	-	1.4	1.4	1.4
Face drilling motor	kw	-	0.75	-	-	-	0.75	0.75
X2/Z2 motor	kw	-	0.75 / 0.75	-	-/0.75	-/0.75	0.75/0.75	0.75/0.75
Coolant motor	kw	2.3	2.3	2.3	2.3	2.3	2.3	2.3
Machine dimensions (LxWxH)	mm	2360x1660x2095	2865x1625x2045	2360x1725x2095	2865x1625x2045	2865x1625x2045	2865x1625x2045	2865x1625x2045
Weight	kg	2500	3100	2500	2650	2700	3100	3100

Spindle servo motor
External tool holder (6 tool)
Internal tool holder (5 tool)
Cross drilling tool holder (4 tool)
Tool and tool box
Lighting device
Fixed guide bush holder
Cs function
Cutting coolant
Cutting coolant inspection
Sub-spindle
Guide bush
Spindle collet
Main spindle hydraulic chuck system

Parts catcher
Parts conveyor
Non guide bush holder
ER16 collet chuck (two-sides)
Simultaneously rotary guide bush holder
Long parts catcher
Chip conveyor
ER16 collet set
ER20 collet set
Cutting oil cooler
3 position eccentric rotary tool holder
Voltage stabilizer
Transformer
CE mark
Multiple bar feeder
