CNC Swiss Type Lathe
CNC Swiss Type Lathe
SS-20S/20AS
Application: swiss type lathe, swiss type lathes, cnc swiss lathe, swiss turning machines, medical implant.
Max. turning diameter 20mm.
Both guide bush / Non guide bush holder are available for making complicated components.

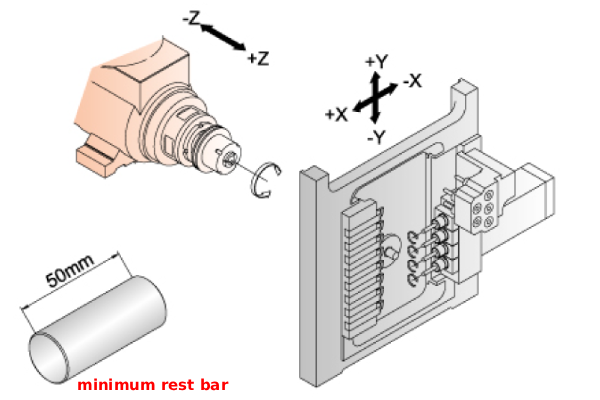

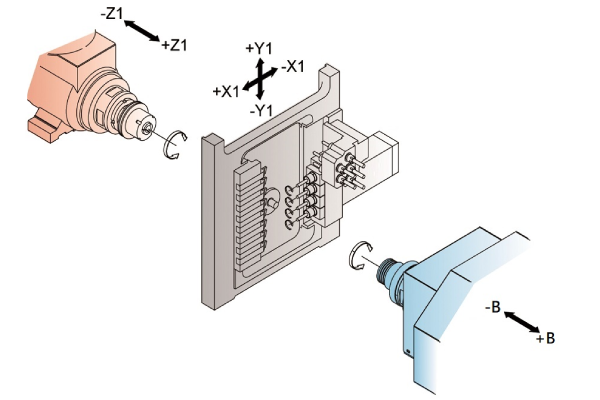

Four axes simultaneously movement(X/Y/Z/B) work with main / sub tooling system.
With cross drilling, it works well in milling, drilling and tapping.
Main and sub spindle can drill simultaneously.
Both guide bush / Non guide bush holder are available for making complicated components.
Four axes simultaneously movement(X/Y/Z/B) work with main / sub tooling system.
With cross drilling, it works well in milling, drilling and tapping.
Main and sub spindle can drill simultaneously.
| Model | Unit | SS-20S | SS-20AS |
|---|---|---|---|
| Max. turning dia. of main spindle | mm | 20 | 20 |
| Max. turning dia. of sub-spindle | mm | 20 | 20 |
| Max. turning length (fixed guide bush) | mm | 200 | 200 |
| Max. turning length (rotary guide bush) | mm | 85 | 85 |
| Max. turning length (non guide bush) | mm | 45 | 45 |
| Max. drilling capacity of main spindle | mm | 10 | 10 |
| Max. drilling capacity of sub-spindle | mm | 10 | 10 |
| Max. tapping capacity of main spindle | - | M8 | M8 |
| Max. tapping capacity of sub-spindle | - | M8 | M8 |
| Max. cross drilling capacity | mm | 10 | 10 |
| Max. cross tapping capacity | - | - | M6 |

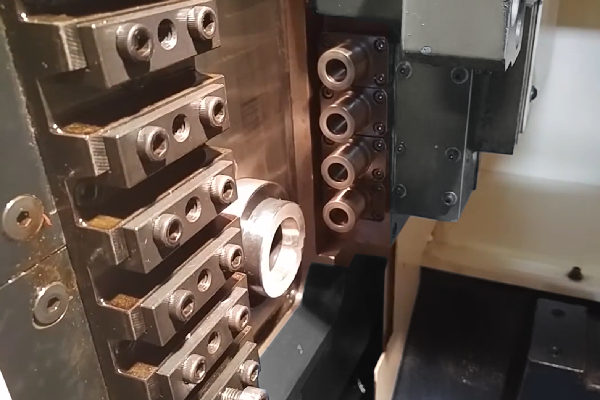

| No. of external turning tools | pcs | 12 | 8 |
| No. of internal turning tools | pcs | 5 | 5 |
| No. of cross drillings | pcs | - | 4 (optional:7) |
| Size of tool | mm | 12x12x90 | 12x12x90 |
| No. of axis controls | - | 4 (X/Y/Z/B) | 5 (X/Y/Z/C/B) |
| Bore of spindle | mm | 29 | 29 |
| Spindle speed range | rpm | 15-8000 | 15-8000 |
| Rapid traverse X/Z | m/min | 24 | 24 |
| Main spindle motor | kw | 3.7 | 3.7 |
| Sub-spindle motor | kw | 2.2 | 2.2 |
| X1/Z1 motor | kw | 0.5 / 0.75 | 0.5 / 0.75 |
| Y-axis motor | kw | 0.75 | 0.75 |
| Cross drilling motor | kw | - | 0.5 |
| X2/Z2 motor | kw | -/0.5 | -/0.5 |
| Coolant motor | kw | 0.375 | 0.375 |
| Power requirement | kw | 15 | 15 |
| Machine dimensions (LxWxH) | mm | 2045 x 1270 x 2025 | 2045 x 1270 x 2025 |
| Weight | kg | 2125 | 2140 |
- Guide bush
- Non guide bushing holder
- Spindle collet
- Cutting coolant inspection
- Cut-off inspection
- Central lubrication unit
- Parts catcher
- Leveling pads
- Cutting coolant
- Lighting device
- Tool and tool box
- Operation manual
- Fixed guide bushing holder
- Simultaneously rotary guide bushing holder
- Chip conveyor
- Parts conveyor
- Long parts catcher
- 3 position eccentric rotary tool holder
- "ER16 collet chuck (double side) for SS-20S/20AS
- ER16 collet set
- Voltage stabilizer
- Transformer
- Hydraulic bar feeder
- CE certification
