CNC Swiss Type Lathe

SS-32RB/32RBY/ 42RB/42RBY

Application: swiss type lathe, swiss type lathes, cnc swiss lathe, swiss turning machines, medical implant.

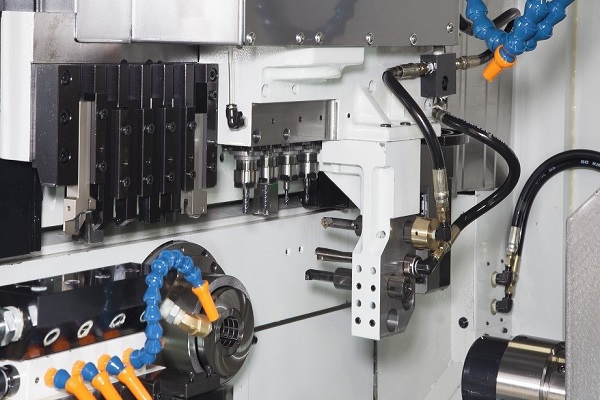

Tooling System

Optional accessory
First tooling system
- 6-position O.D. tool holder
- 6-position cross drilling & milling tool holder
- 5-position I.D. too; holder
- High-pressure coolant system
Second tooling system
- Sub-spindle
- Sub-spindle tooling system
- Part catcher

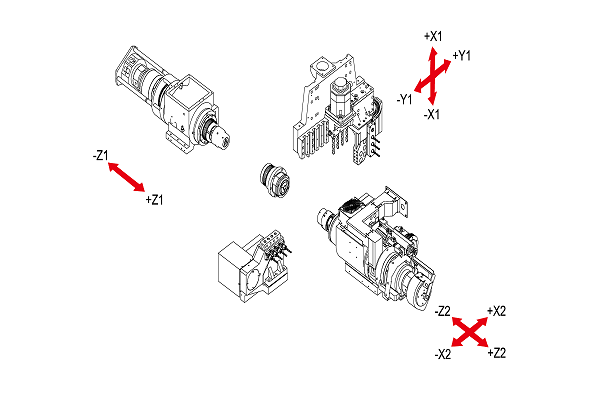

SS-32RB/42RB Tooling layout

Sub-Spindle Tooling System【SS-32RB/42RB】
- The sub-spindle tooling system allows the machine to perform backside machining on a part.
Sub-Spindle Tooling System-Y axis【SS-32RB/42RB】
- The sub-spindle tooling system allows the machine to perform backside machining on a workpiece.

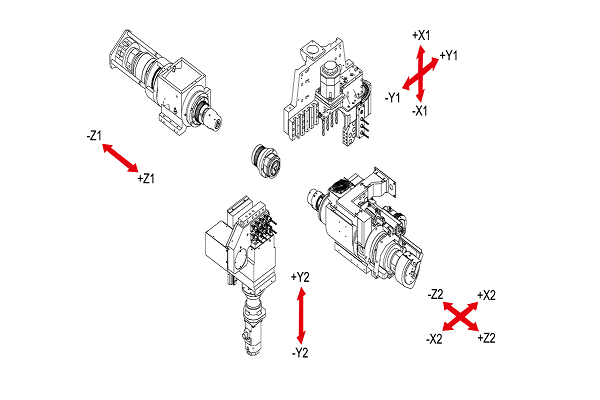

SS-32RBY/42RBY Tooling layout

Cross/Face drilling function 【SS-32RB/32RBY/42RB/42RBY】
- The side drilling unit can be converted to 3-position face drilling for the main and sub-spindle.
- Angle adjustment (manually)

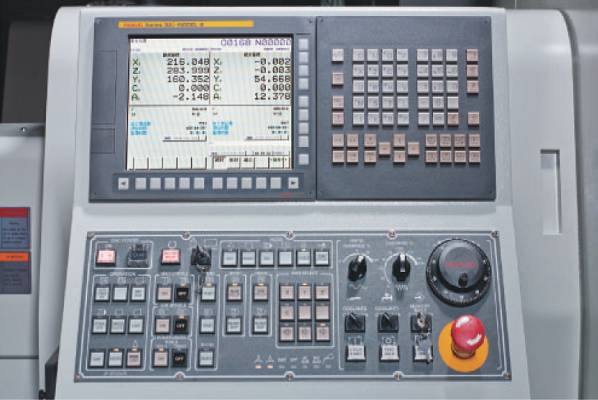

Fanuc 32i CNC control 【SS-32RB/32RBY/42RB/42RBY】
- The control panel can be moved and swiveled for upgrading operating convenience.
Deep hole drilling device (Max. 135mm)【SS-32RB/32RBY/42RB/42RBY】
-The sub-spindle can be equipped with a deep hole drilling device with coolant through the drill.
Rotary guide bushing holder【SS-32RB/32RBY/42RB/42RBY】
- For use in a sliding head lathe to increase stability and surface finish for long part machining.

Model	Unit	SS-32RB	SS-32RBY	SS-42RB	SS-42RBY
Max. turning diameter of main spindle	mm	32	32	42	42
Max. turning dia. of sub-spindle	mm	32	32	42	42
Max. turning length (rotary guide bush)	mm	310	310	310	310
Max. turning length (non guide bush)	mm	105	105	105	105
Max. turning length (fixed guide bush)	mm	350	350	350	350
Max. drilling / tapping capacity of main spindle	mm	ø13/M10	ø13/M10	ø13/M10	ø13/M10
Max. drilling / tapping capacity of sub-spindle	mm	ø10/M8	ø10/M8	ø10/M8	ø10/M8
Max. cross drilling / tapping capacity	mm	ø10/M6	ø10/M6	ø10/M6	ø10/M6
No. of external turning tools	pcs	6(□16)mm/5(□20mm)	6(□16)mm/5(□20mm)	6(□16)mm/5(□20mm)	6(□16)mm/5(□20mm)
No. of internal turning tools	pcs	5/ø25mm	5/ø25mm	5/ø25mm	5/ø25mm
No. of cross drillings of main spindle	pcs	6(ER-16x2&ER20x4)	6(ER-16x2&ER20x4)	6(ER-16x2&ER20x4)	6(ER-16x2&ER20x4)
No. of face tool holder of sub-spindle	pcs	4	8	4	8
No. of axis controls	pcs	7	8	7	8
Main / sub-spindle bore	mm	ø34	ø34	ø44	ø44
Max. speed of main / sub-spindle	rpm	7000	7000	6000	6000
X1/Z1/Y1/X2/Z2/Y2-axis rapid traverse	m/min	24	24	24	24
Max. speed of main spindle cross drilling	rpm	4000	4000	4000	4000
Main spindle cross tooling drive motor	kw	1.6	1.6	1.6	1.6
Sub-spindle face tooling drive motor	kw	0.75	0.75	0.75	0.75
Max. speed of sub-spindle face drill	rpm	4000	4000	4000	4000
Main spindle motor	kw	5.5/7.5	5.5/7.5	5.5/7.5	5.5/7.5
Sub-spindle motor	kw	5.5/7.5	5.5/7.5	5.5/7.5	5.5/7.5
X1/Z1-axis motor	kw	1.4	1.4	1.4	1.4
Y1/X2/Z2 motor	kw	0.75	0.75	0.75	0.75
Y2-axis motor	kw	-	0.75	-	0.75
Coolant pump motor	kw	1.29	1.29	1.29	1.29
Power requirement	kva	30	30	30	30
Lubrication capacity	L	2	2	2	2
Coolant tank capacity	L	250(100%)	250(100%)	250(100%)	250(100%)
Machine dimensions (LxWxH)	mm	3106x1690x2100	3106x1690x2100	3106x1690x2100	3106x1690x2100
Weight	kg	4900	4920	4900	4920

Standard Accessories
External tool holder (6 tools)
Internal tool holder (5 tools)
Cross drilling tool holder (6 tools)
Parts catcher and conveyor
Tools and tool box
Lighting device
Fixed guide bushing holder
Main spindle servo motor
Main spindle C axis
Coolant device
Cutting coolant inspection (electronic type)
Cut-off inspection
Central lubrication unit
Sub-spindle C axis
Sub-spindle
Face drilling/milling tool holder (4 tools) for sub-spindle
Face drilling/milling tool holder (8 tools) for sub-spindle
Y2 axis
Fixed tool holder (sub-spindle) SS-32RB/SS42RB(2pcs)、SS-32RBY/SS42RBY(3pcs)
Rotary tool holder (sub-spindle) SS-32RB/SS42RB(2pcs)、SS-32RBY/SS42RBY(3pcs)
3 position OD tool holder □10 (sub-spindle) SS-32RBY/SS42RBY(1pcs)
Chuck gripper (2pcs)
Machining room with safety lock
Guide bush (1pc)
Spindle collet (2pcs)
Operation manual
NC operation manual
NC maintenance manual
Main and sub-spindle oil cooling system

Non guide bushing holder
Ø16 lD tool holder (sub-spindle)
Simultaneous rotary guide bushing holder Extended ID tool holder for sub-spindle Ø16,1-2
Stationary tool holder (sub-spindle) ER-16 Extended ID tool holder Ø16 (with one Ø16,1-2 ID tool holder)
Rotary tool holder (sub-spindle) ER-16
ER16 M2 double side inner tool holder
High pressure coolant system 15/50/100 bars (with sub coolant tank)
ER 16/20 collet set
Hydraulic chuck for sub-spindle
Chip conveyor and cart
Power driven saw unit
Long parts catcher
3 position eccentric tool holder ( main and sub-spindle)
Cutting oil cooler
3 position angle drilling tool holder (manualadjusting)
Oil mist collector
1 position cross live tool (sub-spindle) Voltage stabilizer
1 position OD tool holder (sub-spindle) Transformer
Ø16 ID tool holder shortened type (sub-spindle)
Hydraulic bar feeder
CE certification
