SL-42/52/60/60L
Application: swiss type lathe, swiss type lathes, cnc swiss lathe, swiss turning machines, medical implant.

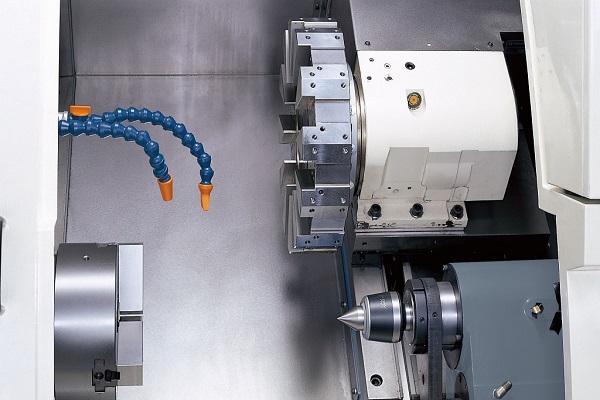

3-Jaw Chuck, Turret and Tailstock
The 12-position heavy turret
features large diameter cuivic
coupling and high pressure of 4396
kgf. Tool change time between
adjacent tools is 0.3 seconds.
features large diameter cuivic
coupling and high pressure of 4396
kgf. Tool change time between
adjacent tools is 0.3 seconds.

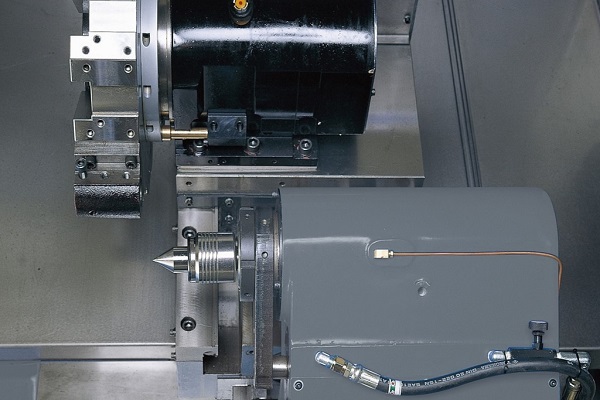

Programmable Tailstock
The widely spaced tailstock slide-
ways and heavy duty construction
assure maximum rigidity. The center
sleeve can be controlled by foot
switch or programs.
ways and heavy duty construction
assure maximum rigidity. The center
sleeve can be controlled by foot
switch or programs.

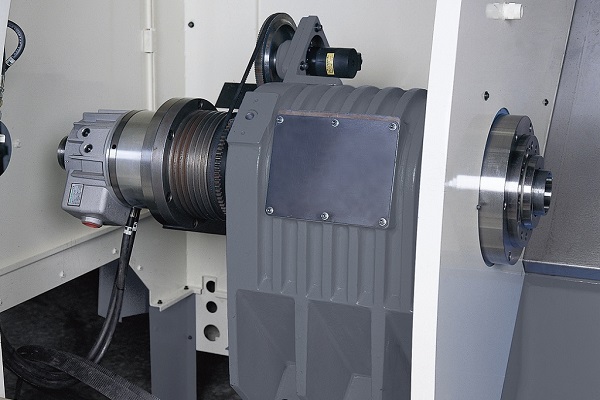

Precision Spindle
The spindle stock is manufactured
from high quality meehanite cast
iron. The spindle stock surface has
fins to increase heat dissipation
efficiency while assuring spindle
accuracy.
from high quality meehanite cast
iron. The spindle stock surface has
fins to increase heat dissipation
efficiency while assuring spindle
accuracy.
| Model | Unit | SL-42 | SL-52 | SL-60 | SL-60L |
|---|---|---|---|---|---|
| Max. swing over bed | mm | 510 | 510 | 510 | 510 |
| Max. turning diameter | mm | Ø320 | Ø320 | Ø320 | Ø320 |
| Max. turning length | mm | 320 | 320 | 320 | 500 |
| Spindle max. bar capacity | mm | Ø42 | Ø50 | Ø60 | Ø60 |
| Spindle bore diameter | mm | Ø56 | Ø70 | Ø75 | Ø75 |
| Spindle nose | - | A2-5 | A2-5 | A2-6 | A2-6 |
| Spindle speed range | rpm | 45~3500 | 45~3500 | 45~3500 | 45~3500 |
| Spindle motor | kw | Standard 7.5 , Optional: 15 | Standard 7.5 , Optional: 15 | 15 | 15 |
| Number of tool station | - | 10 | 10 | 12(8) | 12(8) |
| Max. stroke X/Z-axis | mm | 171/360 | 171/360 | 170/360 | 171/550 |
| Rapid traverse X/Z-axis | m/min | 16/20 | 16/20 | 16/20 | 16/20 |
| Turret indexing time | sec | 0.3 | 0.3 | 0.3 | 0.3 |
| Machine slant design | deg | 30˚ | 30˚ | 30˚ | 30˚ |
| Slideway type | - | Linear guideway | Linear guideway | Linear guideway | Linear guideway |
| Quill taper | - | MT4 | MT4 | MT4 | MT4 |
| Tailstock traverse | mm | 100 | 100 | 100 | 100 |
| Spindle hydraulic chuck | - | 8" | 8" | 8" | 8" |
| Turning tool diameter | mm | □20 | □20 | □20 | □20 |
| Boring tool diameter | mm | Ø32 | Ø32 | Ø32 | Ø32 |
| X/Z-axis ballscrew | mm | Ø32 | Ø32 | Ø32 | Ø32 |
| Hydraulic motor | kw | 1.5 | 1.5 | 1.5 | 1.5 |
| Lubrication system motor | kw | 3.5 | 3.5 | 3.5 | 3.5 |
| Power requirement | kva | 20 | 20 | 32 | 32 |
| Coolant tank capacity | L | 120 | 120 | 120 | 120 |
| Hydraulic pump motor | kw | 1.5 | 1.5 | 1.5 | 1.5 |
| Machine dimensions(LxWxH) | mm | 2165x1555x1890 | 2165x1555x1890 | 2475x1605x1910 | 2780x1625x1948 |
| Weight | kg | 3100 | 3100 | 3100 | 3100 |
Standard Accessories
- Cutting coolant
- Splash guard
- Hydraulic turret
- Tailstock
- Chuck air blow
- Tools and tool box
- Wedge block
- Leveling pads
- Heat exchanger
- Operation manual
Optional Accessories
- Tool presetter
- Chip conveyor
- Parts conveyor
- Parts catcher
- Voltage stabilizer
- Transformer
- Hydraulic bar feeder
- CE certification
