CNC Swiss Type Lathe
CNC Swiss Type Lathe

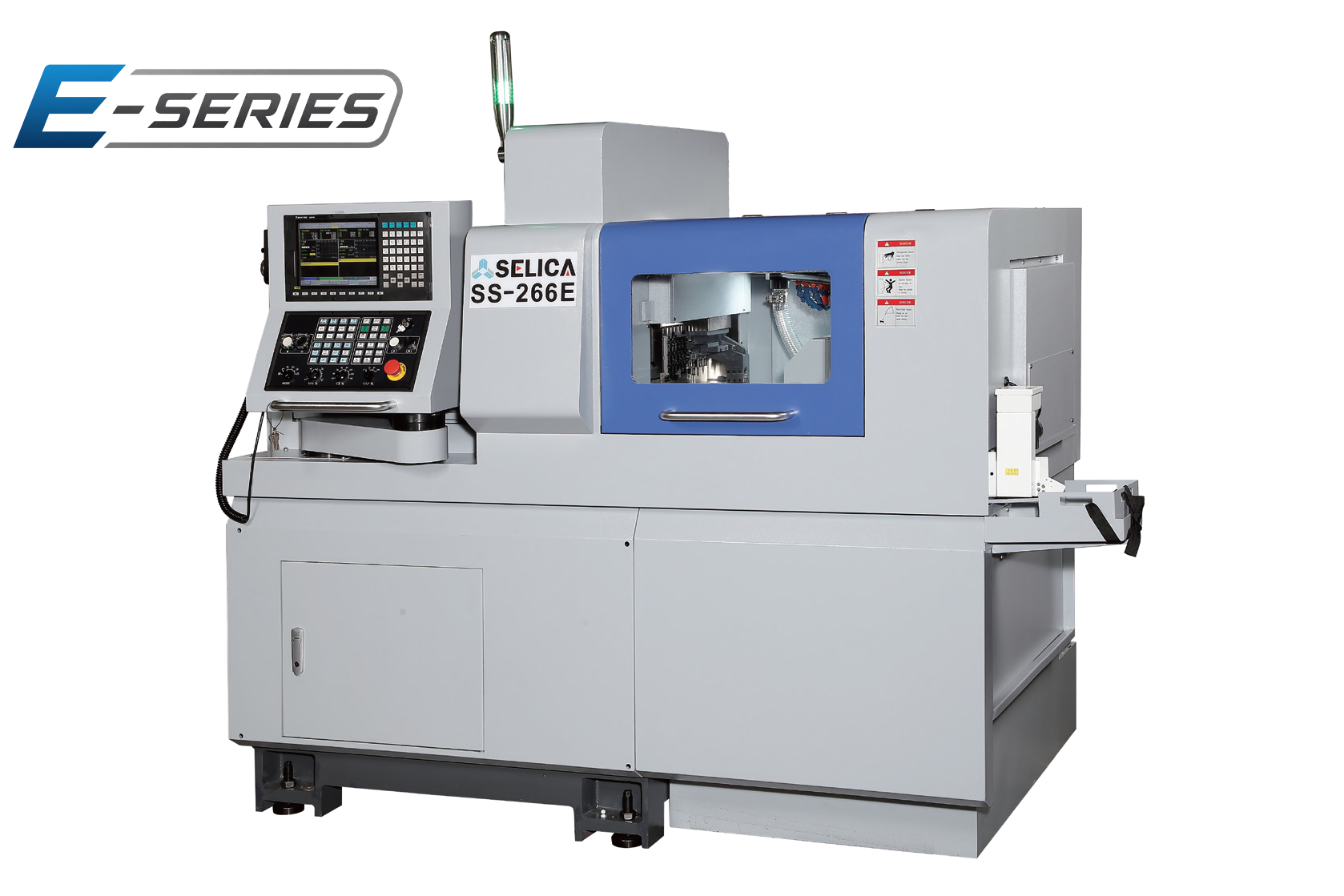

SS-206E/266E/ 326E/386E
High rigidity, high precision Swiss type lathes, enhanced with a comprehensive tooling system to handle complex workpieces on the same machine, increasing efficiency by 20% to 40%.
Capable of guide bushing and non-guide bushing operations, suited for various machining requirements.

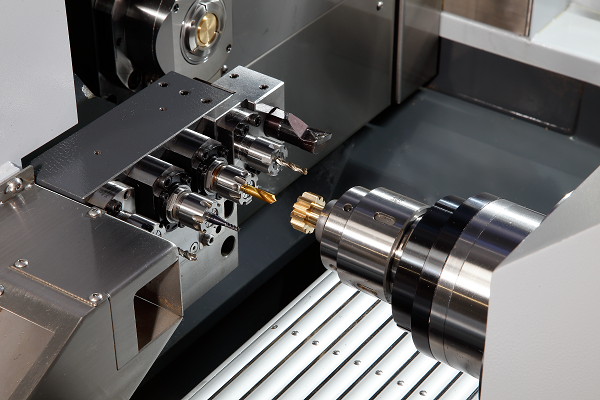

Both the main and sub spindles are integrated with built-in motors and C-axes.

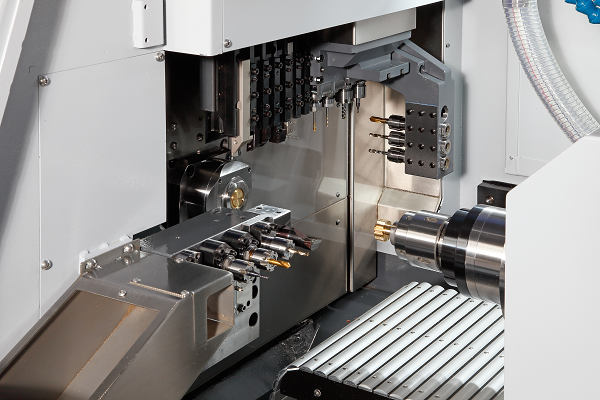

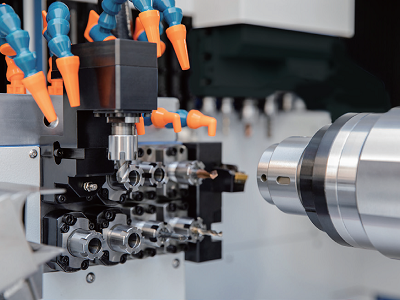

Modular tooling system with up to 16 tooling stations on the main spindle and up to 9 on the sub spindle, offering more choices to customers.
Both the main and sub spindles are integrated with built-in motors and C-axes.
Modular tooling system with up to 16 tooling stations on the main spindle and up to 9 on the sub spindle, offering more choices to customers.

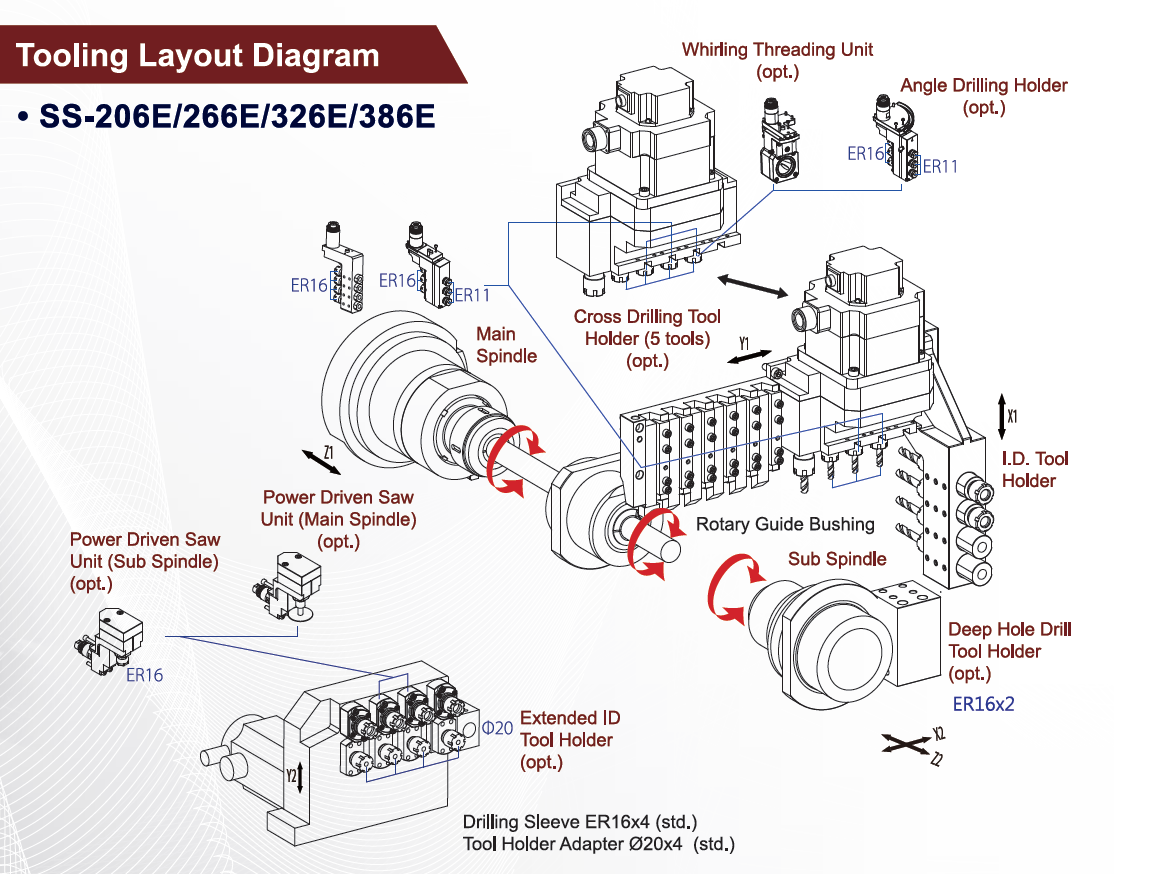

tooling layout Diagarm
The SS-205E is a high-precision CNC Swiss Type Lathe, designed for small, complex parts with tight tolerances. The tooling layout diagram shows the optimized arrangement of tools on the machine for efficient operations like turning, drilling, and tapping. This setup ensures quick and precise machining for enhanced production.

Model | SS-206E | SS-266E | SS-326E | SS-386E |
---|---|---|---|---|
Max. Processing Diameter for Main Spindle(mm) | 20 | 26 | 32 | 38 |
Max. Processing Diameter for Sub Spindle(mm) | 20 | 26 | 32 | 38 |
Max. Processing Length (with Rotary Guide Bushing)(mm) | 180 | 180 | 300 | 300 |
Max. Processing Length (without Guide Bushing)(mm) | 50 | 50 | 80 | M10 |
Max. Drilling/Tapping Capability of Main Spindle(mm) | M10 | M10 | M12 | M12 |
Max. Drilling/Tapping Capability of Sub Spindle(mm) | M8 | M8 | M10 | M10 |
Max. Lateral Drilling/Tapping Capability(mm) | M6 | M6 | M8 | M8 |
External Tool Holders(pcs) | 6 | 6 | 6 | 6 |
Internal Tool Holders(pcs) | 4 | 4 | 4 | 4 |
Sub Spindle End Face Power Tool Stations(pcs) | 4 | 4 | 4 | 4 |
Number of Control Axes (Including C Axis)(pcs) | 8 | 8 | 8 | 8 |
Main/Sub Spindle Speed(rpm) | 8000 | 8000 | 7000 | 6000 |
X1/Z1/Y1/Z2/X2 Axis Rapid Feed Rate(m/min) | 20/24 | 20/24 | - | - |
X1/Z1/Y1/Z2 Axis Rapid Feed Rate(m/min) | - | - | 24/30 | 24/30 |
S1 Lateral Drill Speed(rpm) | 5000 | 5000 | 5000 | 5000 |
S1 Lateral Tool Motor(KW) | 0.75 | 0.75 | 1.2 | 1.2 |
S2 End Face Tool Motor (KW) | 0.75 | 0.75 | 1.2 | 1.2 |
S2 End Face Drill Speed(rpm) | 5000 | 5000 | 5000 | 5000 |
Main Spindle Motor(KW) | 4.2 | 4.2 | 6.3 | 4.2 |
Sub Spindle Motor(KW) | 3.1 | 3.1 | 6.3 | 4.2 |
X1/Z1/Y1 Axis Motor(KW) | 0.75 | 0.75 | 1.1 | 1.1 |
X2/Z2/Y2 Axis Motor(KW) | 0.75 | 0.75 | 1 | 1 |
Cooling Pump Motor(KW) | 0.4 | 0.4 | 0.4 | 0.4 |
Power Requirement(KVA) | 20KVA | 20KVA | 25KVA | 25KVA |
Lubrication Oil Capacity(L) | 2 | 2 | 2 | 2 |
Cutting Fluid Capacity(L) | 200(100%) | 200(100%) | 230(100%) | 230(100%) |
Machine Dimensions (L x W x H)(mm) | 2550x1380x1850 | 2550x1380x1850 | 3000x1680x1960 | 3120x1680x1960 |
Weight(KG) | 3000 | 3100 | 3900 | 3950 |
STANDARD ACCESSORIES
- External tool holder(6 tools)
- Main/sub-spindle Inner tool holder (4 tools)
- Cross drilling tool holder (4 tools)
- Dual C-axis
- Sub-spindle fixed tool holder (8 tools)
- Lubrication device
- Parts catcher & conveyor (Conveyor belt included)
- Mechanical pads*6 pcs
- Coolant device
- Working lamp
- Tools & tool box
- Operation manual
- NC control operation manual
- NC control maintenance manual
- Tool overload shutdown system
- Transformer
- Non-guide bushing holder
- Synchronous rotary guide sleeve
- Pressure pusher*2 sets
- Guide bushing
- Spindle collet 2 pcs
- Coolant inspection (Electronic type)
OPTIONAL ACCESSORIES
- OPTIONAL ACCESSORIES
- Hydraulic bar feeder
- Chip conveyor& cart
- Plug-in power head on the back axle
- Electrical cabinet air conditioning
- Whirling Threading Unit
- Milling tooth plate
- Cut-off inspection
- Long parts catcher (Sub-spindle)
- Oil mist collector
- Finished product conveyor belt (add-on)
- High pressure coolant system 70 bars

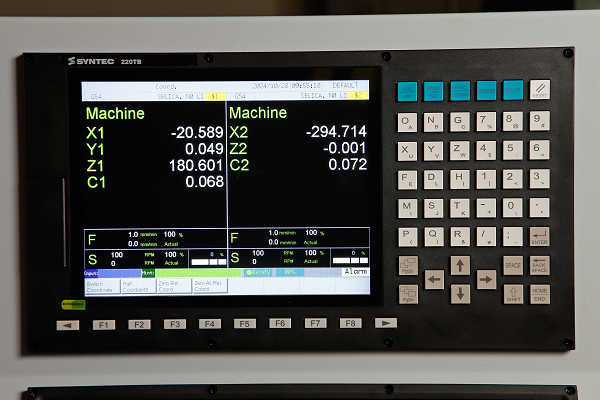

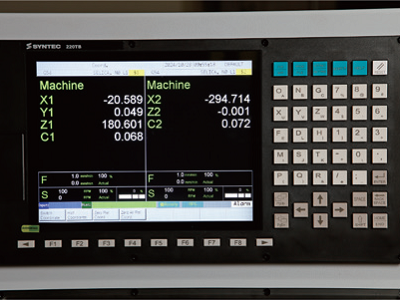

- Mitsubishi System
- Fanuc system SS-206E/266E/326E/386E
- Shake chip breaking

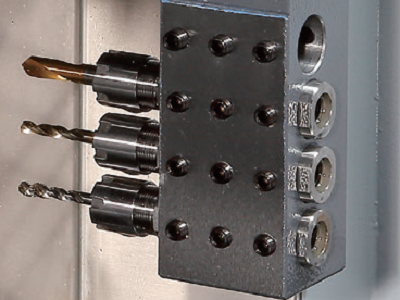

- Deep hole drill holders
- Side-turnig end face eccentric drilling,tappingtool holder (3 stations each of the main andauxiliary spindles)
