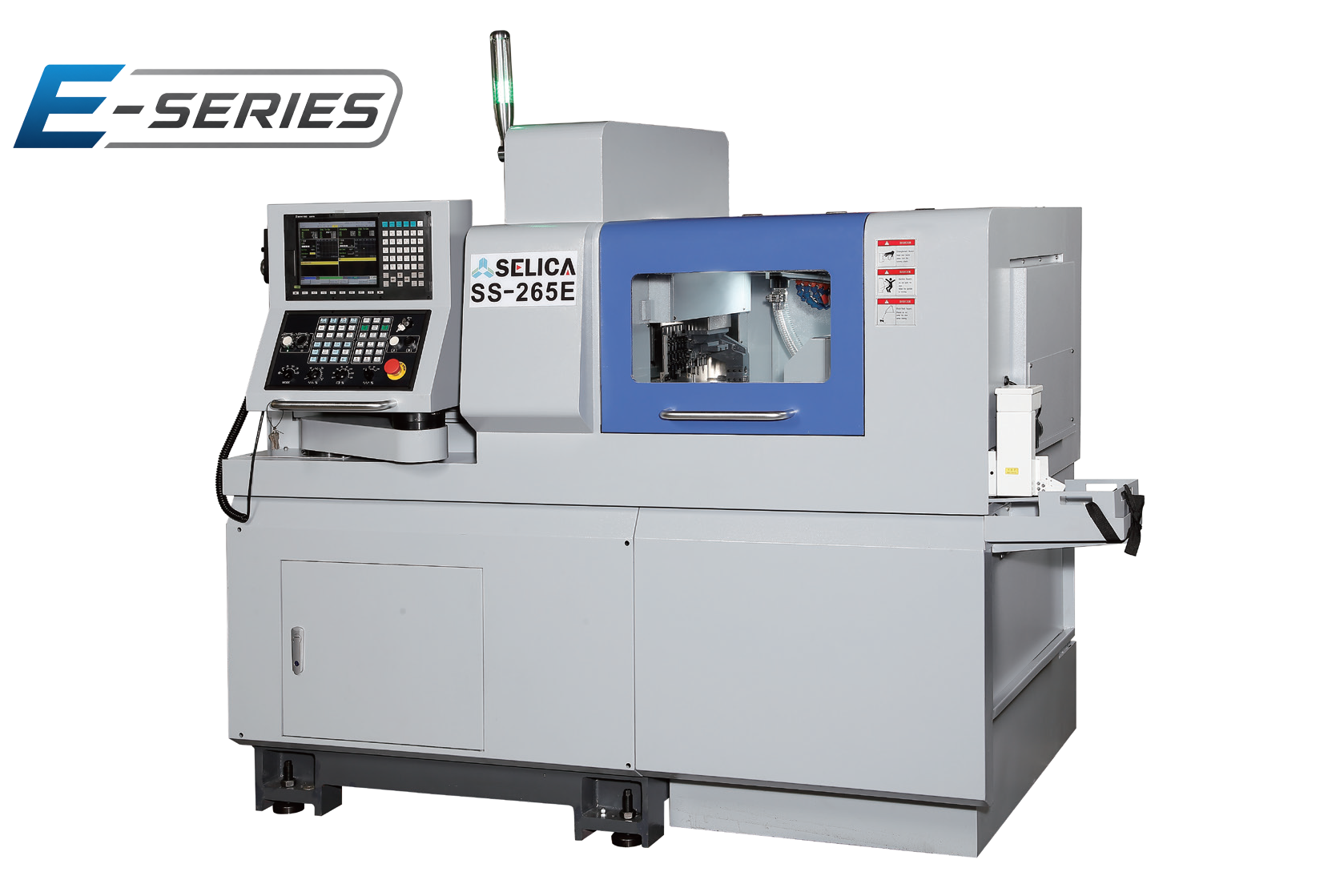

CNC Swiss Type Lathe

SS-205E/265E/ 325E/385E

High rigidity, high precision Swiss type lathes, enhanced with a comprehensive tooling system to handle complex workpieces on the same machine, increasing efficiency by 20% to 40%.

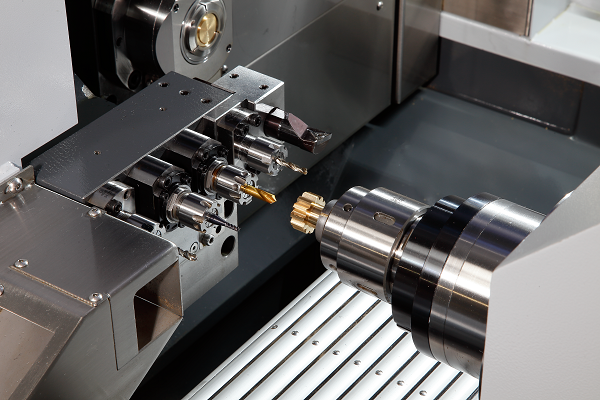

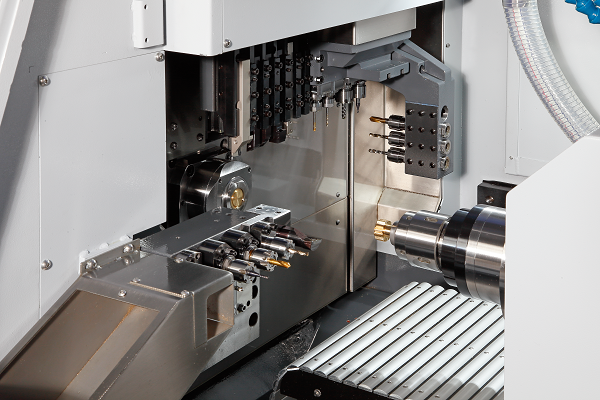

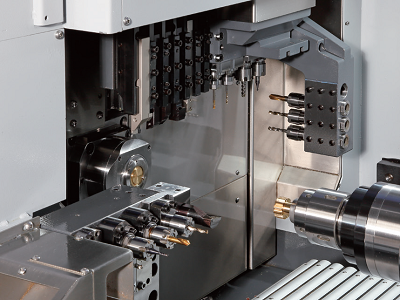

Tooling System Configuration

The tooling system configuration refers to the arrangement of tools on a CNC machine for efficient operations. It ensures fast tool changes, precise machining, and optimized production, tailored to the specific needs of the workpieces.

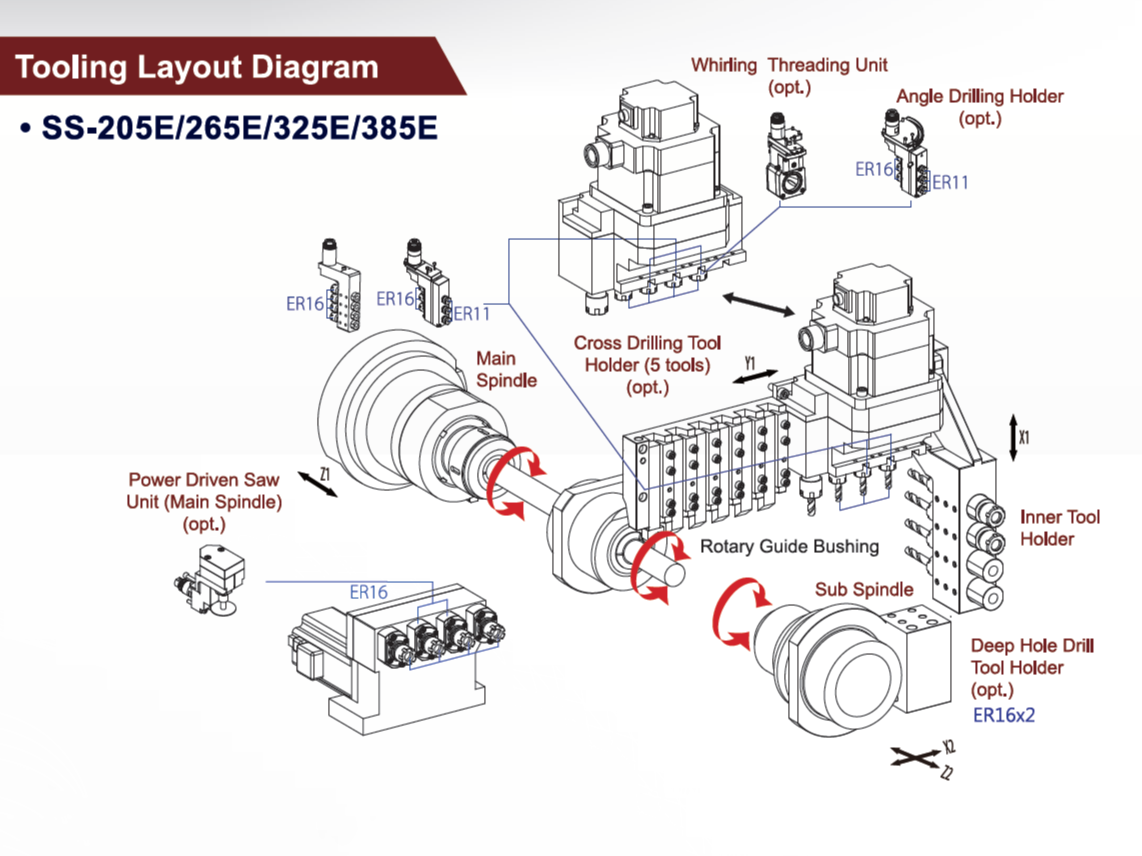

tooling layout Diagarm

The SS-205E is a high-precision CNC Swiss Type Lathe, designed for small, complex parts with tight tolerances. The tooling layout diagram shows the optimized arrangement of tools on the machine for efficient operations like turning, drilling, and tapping. This setup ensures quick and precise machining for enhanced production.

Model	SS-205E	SS-265E	SS-325E	SS-385E
Max. Processing Diameter for Main Spindle(mm)	20	26	32	38
Max. Processing Diameter for Sub Spindle(mm)	20	26	32	38
Max. Processing Length (with Rotary Guide Bushing)(mm)	180	180	300	300
Max. Processing Length (without Guide Bushing)(mm)	50	50	80	90
Max. Drilling/Tapping Capability of Main Spindle(mm)	M10	M10	M12	M12
Max. Drilling/Tapping Capability of Sub Spindle(mm)	M8	M8	M10	M10
Max. Lateral Drilling/Tapping Capability(mm)	M6	M6	M8	M8
External Tool Holders(pcs)	6	6	6	6

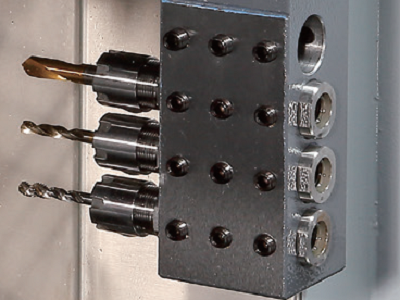

Internal Tool Holders(pcs)	4	4	4	4
Sub Spindle End Face Power Tool Stations(pcs)	4	4	4	4
Number of Control Axes (Including C Axis)(pcs)	7	7	7	7
Main/Sub Spindle Speed(rpm)	8000	8000	6000	6000
X1/Z1/Y1/Z2/X2 Axis Rapid Feed Rate(m/min)	20/24	20/24	20/24	24/30
S1 Lateral Drill Speed(rpm)	5000	5000	5000	5000
S1 Lateral Tool Motor(KW)	0.75	0.75	1.2	1.2
S2 End Face Tool Motor (KW)	0.75	0.75	1.2	1.2
S2 End Face Drill Speed(rpm)	5000	5000	5000	5000
Main Spindle Motor(KW)	4.2	4.2	6.3	4.2
Sub Spindle Motor(KW)	3.1	3.1	6.3	4.2
X1/Z1/Y1 Axis Motor(KW)	0.75	0.75	1.1	1.1
X2/Z2 Axis Motor(KW)	0.75	0.75	1	1
Cooling Pump Motor(KW)	0.4	0.4	0.4	0.4
Power Requirement(KVA)	20KVA	20KVA	25KVA	25KVA
Lubrication Oil Capacity(L)	2	2	2	2
Cutting Fluid Capacity(L)	200(100%)	200(100%)	230(100%)	230(100%)
Machine Dimensions (L x W x H)(mm)	2400x1380x1850	2400x1380x1850	2980x1860x1960	3120x1860x1960
Weight(KG)	2450	2500	2500	3900

STANDARD ACCESSORIES

External tool holder (6 tools)
Main/sub-spindle Inne tool holder (4 tools)
Cross drilling tool holder (4 tools)
Dual C-axis
Sub-spindle fixed tool holder (4 tools)
Lubrication device
Parts catcher & conveyor(Conveyor belt included)
Mechanical pads*6 pcs
Coolant device
Working lamp
Tools & tool box
Operation manual
NC control operation manual
NC control maintenance manual
Tool overload shutdown system
Transformer
Non-guide bushing holder
Synchronous rotary guide sleeve
Pressure pusher*2 sets
Guide bushing
Spindle collet 2 pcs
Coolant inspection (Electronic type)
Sub-spindle fixed tool holder 4 pcs
The counter-spindle machining toolholderpower motor

OPTIONAL ACCESSORIES

Hydraulic bar feeder
Chip conveyor & cart
Plug-in power head on the back axle
Electrical cabinet air conditioning
Whirling Threading Unit
Millingtooth plate
Cut-off inspection
Long parts catcher(Sub-spindle)
Oil mist collector
Finished product conveyor belt (add-on)
High pressure coolant system 70 bars

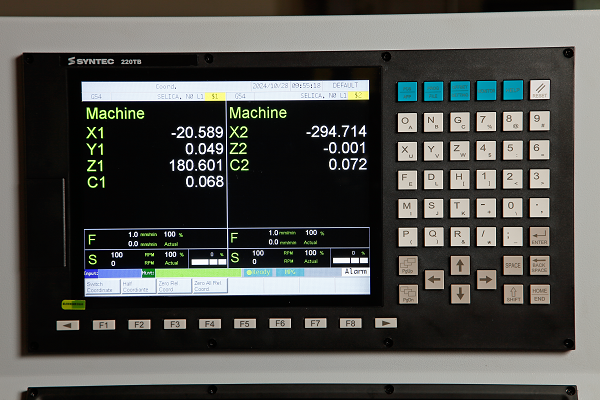

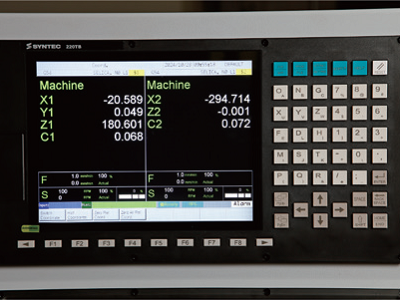

Mitsubishi System
Fanuc system SS-205E/265E/325E/385E
Shake chip breaking
Deep hole drill holder type 32/38 is suitable
Side-turning end face eccentric drilling,tappingtool holder (3 stations each of the main andauxiliary spindles)
