CNC Lathe
CNC Lathe

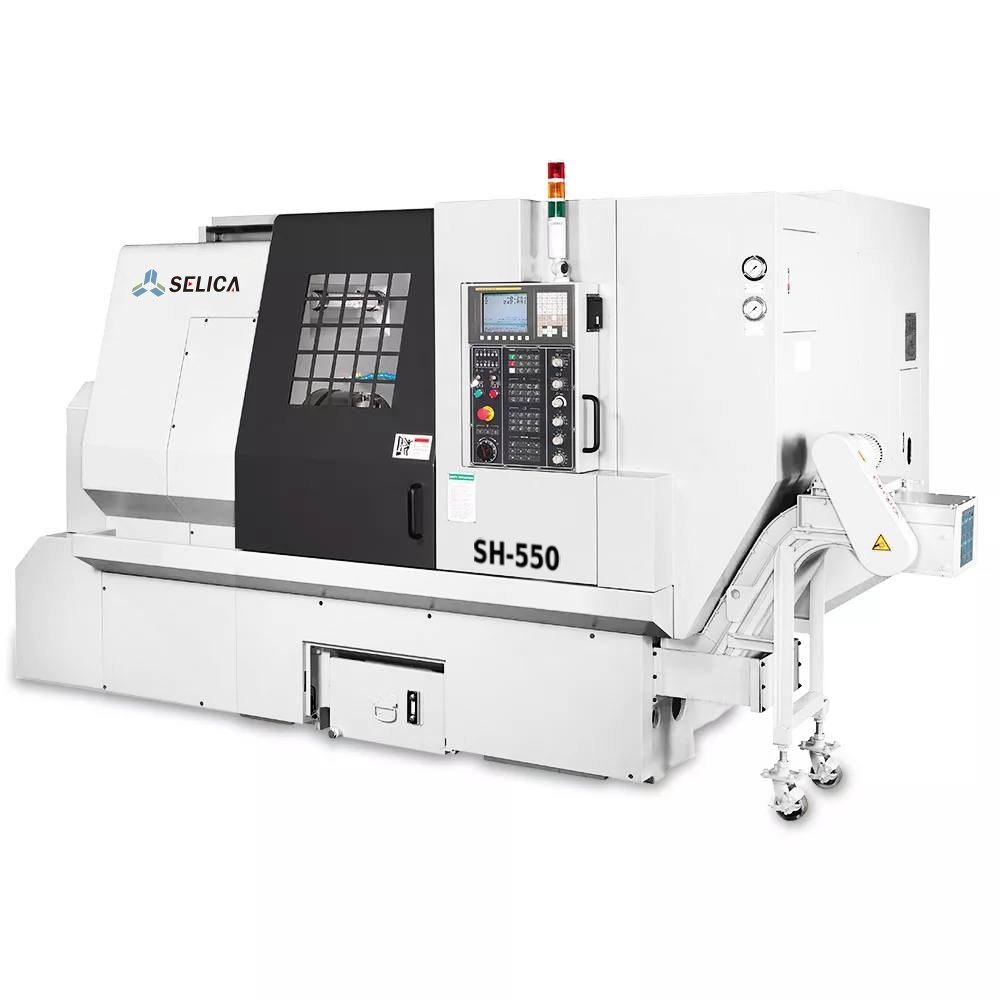

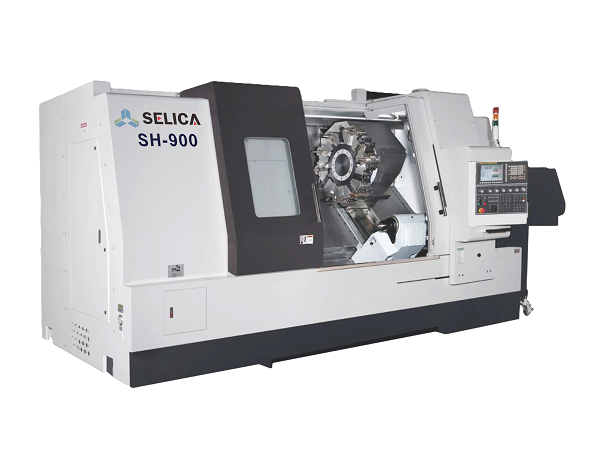

SH-550/680
Application: swiss type lathe, swiss type lathes, cnc swiss lathe, swiss turning machines, medical implant.

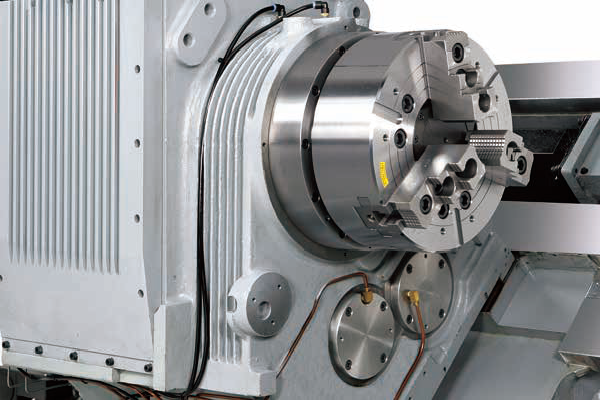

The high precision spindle
Super precision spindle is supported by large
diameter, dual roller bearings and self-aligned
angular ball bearings.
diameter, dual roller bearings and self-aligned
angular ball bearings.

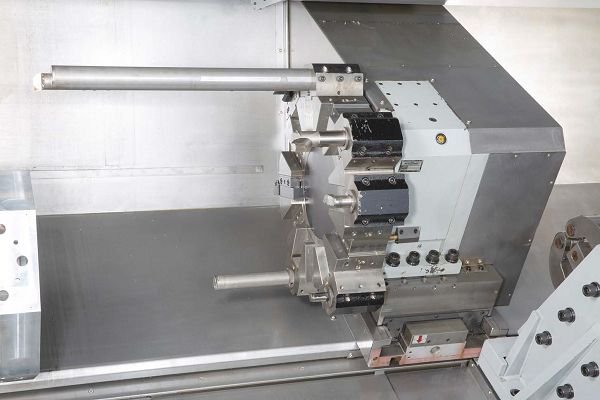

Standard: Hydeaulic Turret
All turrets are built with care and we provide both hydraulic, servo and BMT-60/BMT-75 servo mechanical power
turret to cover a wide range of needs including an optional BMT turret.
turret to cover a wide range of needs including an optional BMT turret.

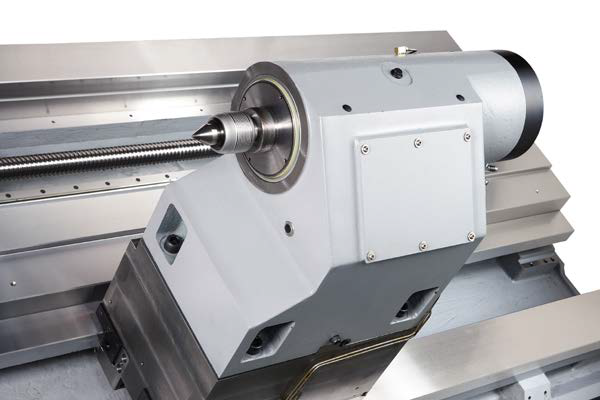

The high precision MT-6 Tailstock
A rack and pinion mechanism drives the heavy duty MT-6
tailstock on the SH550/680 series using its high torque to
deliver powerful positional locking.
tailstock on the SH550/680 series using its high torque to
deliver powerful positional locking.
| Model | Unit | SH-550 | SH-680 |
|---|---|---|---|
| Max. swing over bed | mm | 750 | 850 |
| Max. turning diameter | mm | 550 | 680 |
| Max. turning length | mm | 630/1130/1630/2130/3062 | 630/1130/1630/2130/3062 |
| Max. turning length | mm | 90(105/116.5/166.5) | 90(105/116.5/166.5) |
| Spindle bore diameter | mm | 101(116/131/181) | 101(116/131/181) |
| Spindle nose | - | A2-8(A2-11/A2-15) | A2-8(A2-11/A2-15) |
| Spindle speed range | rpm | 2700(2500/2000/1500) | 2700(2500/2000/1500) |
| Spindle motor | kw | 18.5/22 (30/37) | 18.5/22 (30/37) |
| Number of tool station | - | 12(12) | 12(12) |
| Max. stroke X-axis | mm | 275+30 | 340+30 |
| Max. stroke Z-axis | mm | 750/1250/1750/2250/3182 | 750/1250/1750/2250/3182 |
| Rapid traverse X-axis | m/min | 20 | 20 |
| Rapid traverse Z-axis | m/min | 20/20/20/16/10 | 20/20/20/16/10 |
| Slideway type | - | Square guideway | Square guideway |
| Tailstock taper | - | MT5 | MT6 |
| Spindle hydraulic chuck | inch | 12(15/18) | 12(15/18) |
| Turning tool diameter | mm | □32(25) | □32(25) |
| Boring tool diameter | m | Ø50(40) | Ø50(50) |
| Machine length | cm | 340/570/610/640/790 | 340/570/610/640/790 |
| Machine width | cm | 220 | 220 |
| Machine height | cm | 230 | 235 |
| Weight | kg | 6200/7000/9000/10500/12000 | 6200/7500/9500/11000/12000 |
Standard Accessories
- Hollow 3-jaw hydraulic cylinder & chuck
- RS-232 interface
- Heat exchanger for electric cabinet
- Hydraulic power supply unit
- Coolant system (4-bar)
- Central lubrication unit
- Three-color warning light
- Chip conveyor and chip cart
- Standard soft jaw and hard jaw
- Tool kit
- Operation manual
Optional Accessories
- Radial rotary tool holder
- Axial rotary tool holder
- Auto door
- Oil-coolant skimmer
- Oil mist collector
- Transformer
- CE certification
