CNC Lathe
CNC Lathe

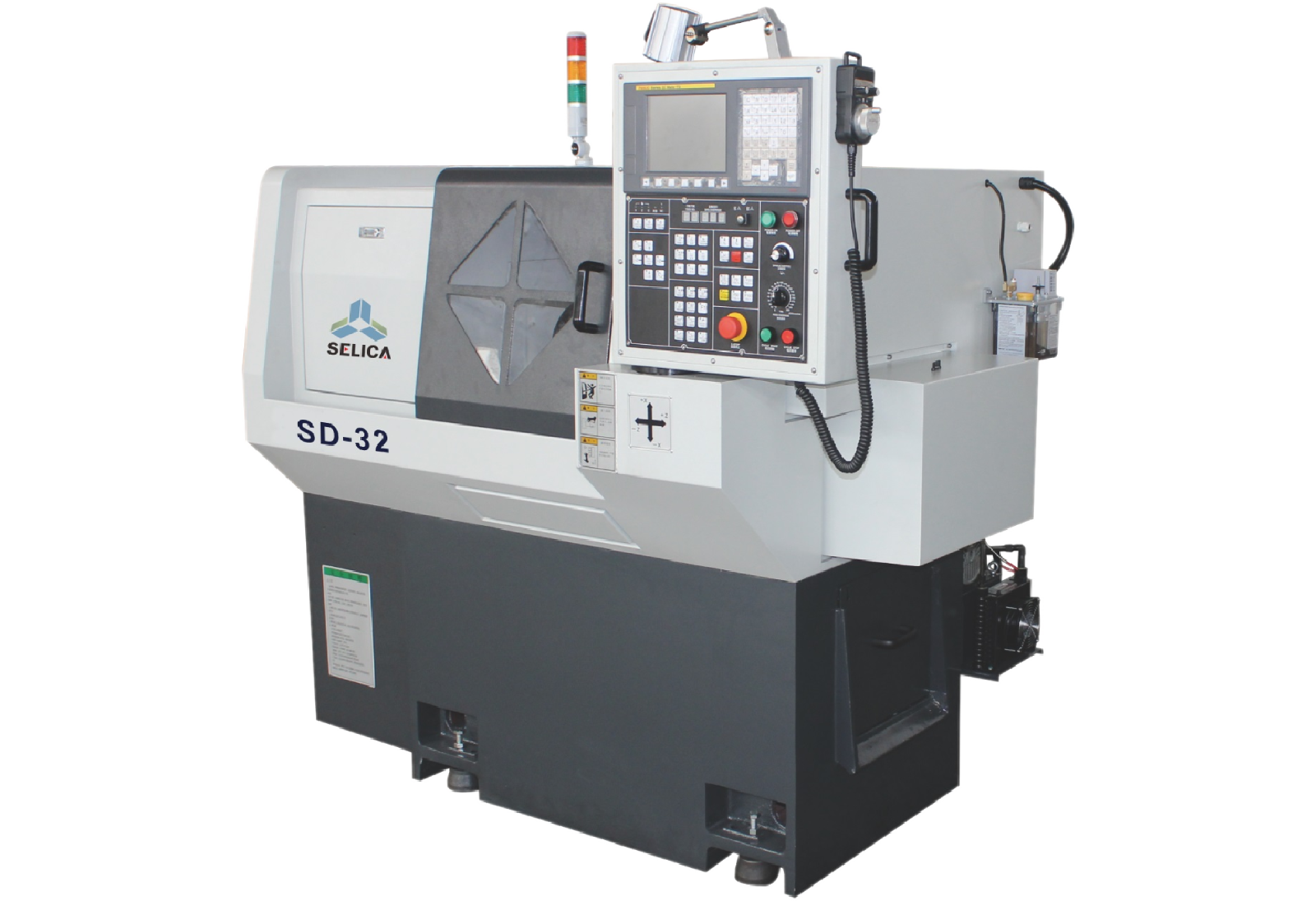

SD-32
The SD-32 is one of our compact CNC lathe that designed especially for small and high precision parts, as well as provides powerful processing capacity, stable quality, and accuracy. It could be mounted a turret, gang type tool holders, and/or cross-drilling device to meet the requirements in any kind of precision machining.

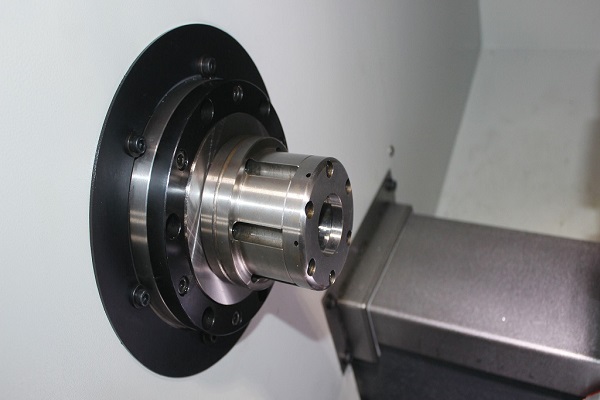

Collet Chuck

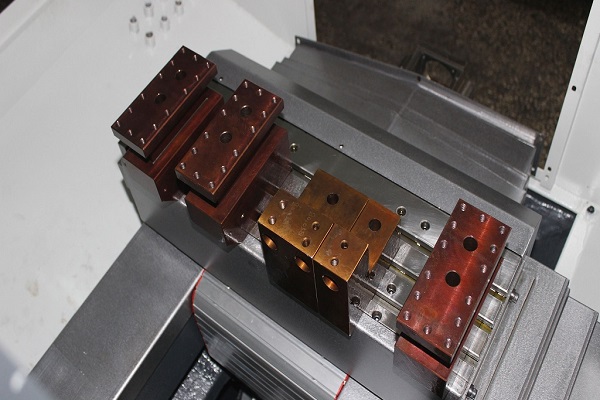

Gang Type Tool Holder

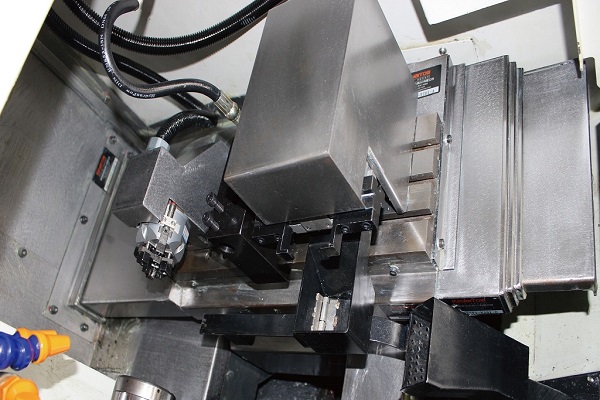

Robotic Arm
Hydaulic Turret +3 position ID Tool Holder

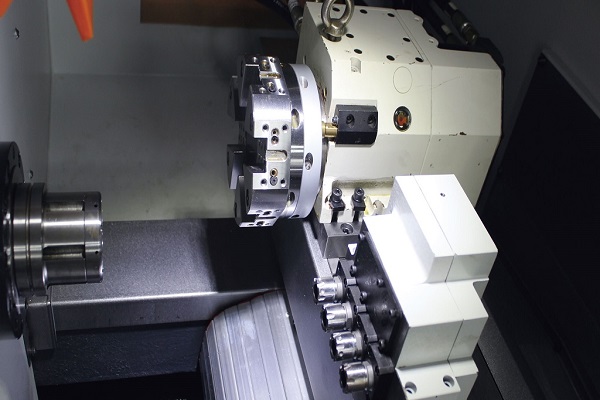

Hydaulic Turret + Face Drilling Device

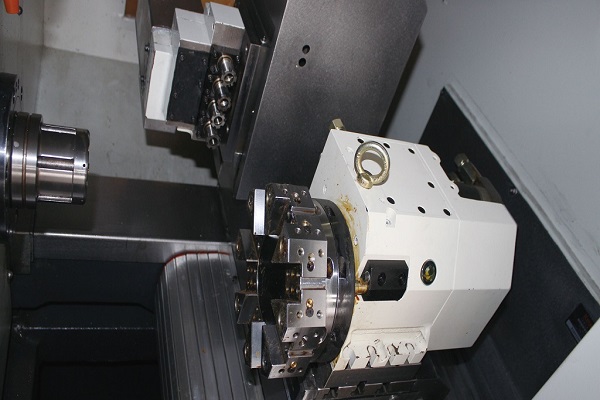

Hydaulic Turret + Cross Drilling Device
The SD-32 is one of our compact CNC lathe that designed especially for small and high precision parts, as well as provides powerful processing capacity, stable quality, and accuracy. It could be mounted a turret, gang type tool holders, and/or cross-drilling device to meet the requirements in any kind of precision machining.
| Model | Unit | SD-32 | SD-32Y |
|---|---|---|---|
| Max. swing over bed | mm | 500 | 500 |
| Max. turning diameter | mm | Ø100 | Ø100 |
| Spindle bore diameter | mm | Ø32 | Ø32 |
| Max. turning length | mm | 100 | 100 |
| X/Z-axis travel | mm | 175 | 135 |
| X/Z-axis rapid traverse | m/min | 20 | 20 |
| Positioning accuracy | mm | 0.005 | 0.005 |
| Transmission | - | Belt | Belt |
| Spindle motor | kw | 3.7 | 3.7 |
| Spindle speed | rpm | 50-6000 | 50-6000 |
| Spindle chuck | - | 4" | 4" |
| Ballscrew diameter | mm | Ø25 | Ø25 |
| X/Z-axis motor | kw | 0.75 | 0.75 |
| Number of tool station | pcs | 8 | 8 |
| Turret indexing time | sec | 0.3 | 0.3 |
| Front drilling motor | kw | - | 0.75 |
| Cross drilling motor | kw | - | 0.75 |
| Y-axis motor | kw | - | 0.75 |
| Slideway type | - | Linear guide way | Linear guide way |
| Turning tool diameter | mm | □16 | □16 |
| Boring tool diameter | mm | Ø20 | Ø20 |
| Coolant motor | HP | 3/4 | 3/4 |
| Coolant tank capacity | L | 80(85%) | 80(85%) |
| Hydraulic motor | HP | 1 | 1 |
| Hydraulic tank capacity | L | 20(85%) | 20(85%) |
| Power requirement | kva | 10 | 10 |
| Machine dimensions(LxWxH) | mm | 1950x1670x1700 | 1950x1670x1700 |
| Weight | kg | 1700 | 1750 |
Standard Accessories
- Cutting coolant
- Central lubrication unit
- Tools and tool box
- Foot switch
- Operation manual
- NC operation manual
- NC maintenance manual
- Collet chuck
- Barfeeder interface
- Inner tool holder
- Wedge block
- Cutting tool sleeve
- Heat exchanger
Optional Accessories
- 4" 3 jaw chuck
- Chip conveyor and cart
- Parts conveyor
- Parts catcher
- Voltage stabilizer
- Transformer
- Hydraulic bar feeder
