CNC Lathe
CNC Lathe

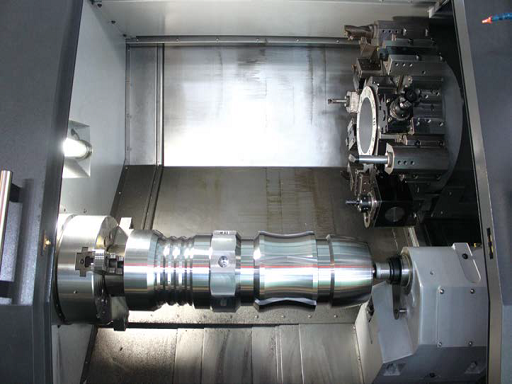

SH-700/900
Application: swiss type lathe, swiss type lathes, cnc swiss lathe, swiss turning machines, medical implant.
Heavy-Duty Live Tooling Holder

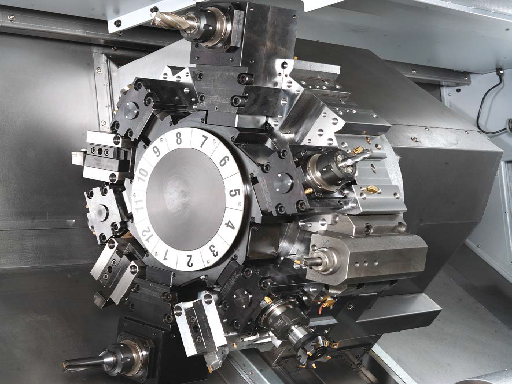

The turret has an across-diameter of 710mm and features 12 tool positions with minimal machining interference.
Each tool position is equipped with four bolts for securely mounting either cutting tool holders or live tool holders, allowing flexible utilization based on machining requirements.
This design enables multi-functional machining capabilities, including precision and heavy-duty turning, milling, drilling, and tapping.
Each tool position is equipped with four bolts for securely mounting either cutting tool holders or live tool holders, allowing flexible utilization based on machining requirements.
This design enables multi-functional machining capabilities, including precision and heavy-duty turning, milling, drilling, and tapping.

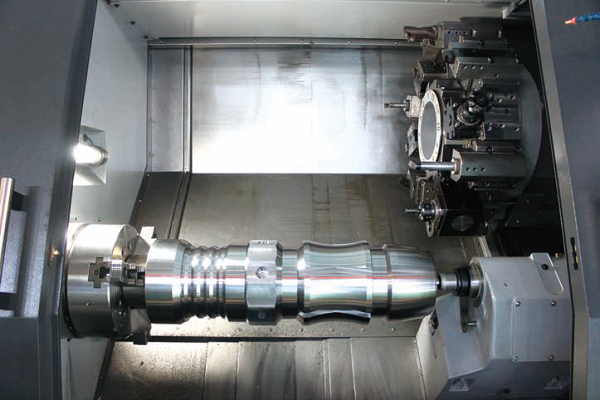

Heavy-Duty Live Tool Turret + C-Axis Control
To accommodate the current diversification of machining, a special drive design is adopted, capable of transmitting up to 11kW of power. This ensures the ability to meet the requirements for high-speed machining, large workpieces, high material removal rates, and machining of high-strength materials.

Steady Rest

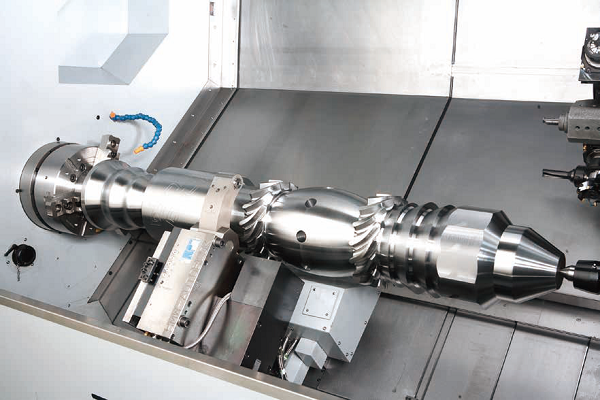

For long cylindrical workpieces: During the machining rotation, to prevent excessive deflection, wobbling, and vibration caused by the workpiece's weight, a hydraulic centre rest can be used for clamping. This helps ensure the required machining stability and precision.

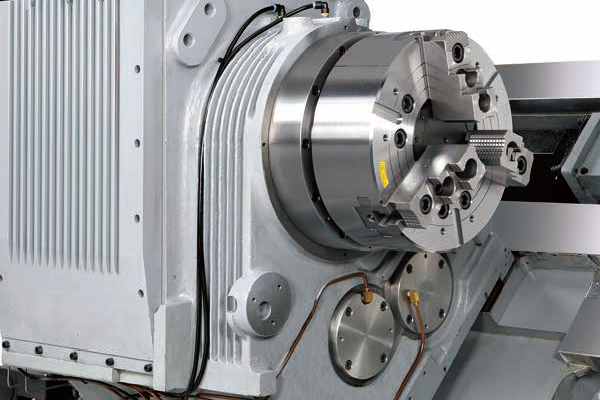

Model | Unit | SH-700 | SH-900 |
---|---|---|---|
Max. swing over bed | mm | 900 | 1030 |
Max. turning diameter | mm | 700 | 900 |
Max. turning length | mm | 1400/2100/3000/4000 | 1350/2050/2950/3950 |
Spindle max. bar capacity | mm | 116(190/235/260/320/360) | 116(190/235/260/320/360) |
Spindle bore diameter | mm | 131(205/235/258) | 205(235/258/320/375) |
Spindle nose | - | A2-11(A2-15) | A2-15(A2-20) |
Spindle speed range | rpm | 2000(1500/850/800) | 1500(850/8000/400/300) |
Spindle motor | kw | 30/37(37/45)+2-speed gearbox | 30/37(37/45)+2-speed gearbox |
Number of tool station | - | 12 | 12 |
Max. stroke X-axis | mm | 350+30 | 450+20 |
Max. stroke Z-axis | mm | 1500/2100/3100/4100 | 1500/2100/3100/4100 |
Rapid traverse X-axis | m/min | 20 | 20 |
Rapid traverse Z-axis | m/min | 24/15/10/6 | 24/15/10/6 |
Slideway type | - | Square guideway | Square guideway |
Tailstock taper | - | MT6 | MT6 |
Spindle hydraulic chuck | inch | 15(18/20/24) | 24(32) |
Turning tool diameter | mm | □ 32 | □ 32 |
Boring tool diameter | mm | Ø50 | Ø50 |
Machine length | cm | 620/690/790/890 | 620/690/790/890 |
Machine width | cm | 280 | 280 |
Machine height | cm | 270 | 300 |
Weight | kg | 14000/15000/17000/19000 | 14500/15500/17500/19500 |
